Circuit Diagram: (M/T)

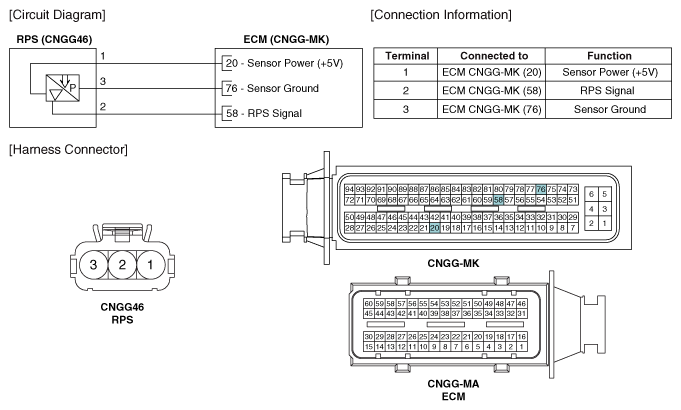

Fig 1: Rail Pressure Sensor Circuit (M/T)

G12066337

Courtesy of HYUNDAI MOTOR AMERICA
