Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart Key Code Saving".

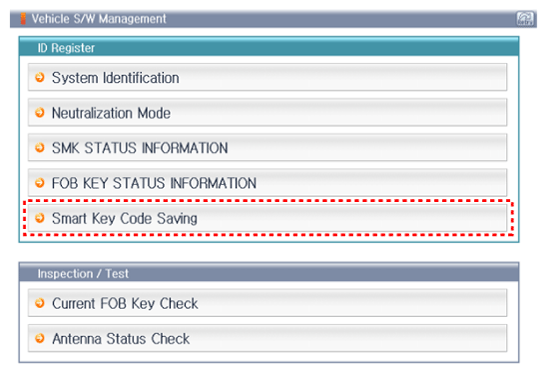

Fig 2: Scantool Display - Vehicle S/W Management
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be shown in (Fig 3).

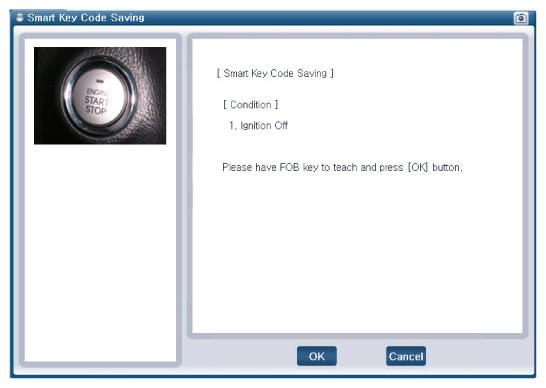

Fig 3: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After having the teaching smart key, push "Enter" key.
Input the "Pin Code" for first key teaching.

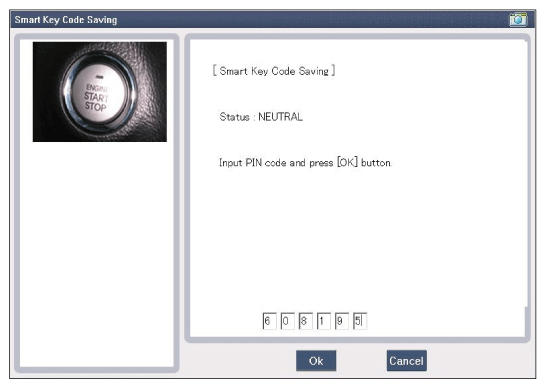

Fig 4: Scantool Display - Input Pin Code
Courtesy of HYUNDAI MOTOR AMERICA

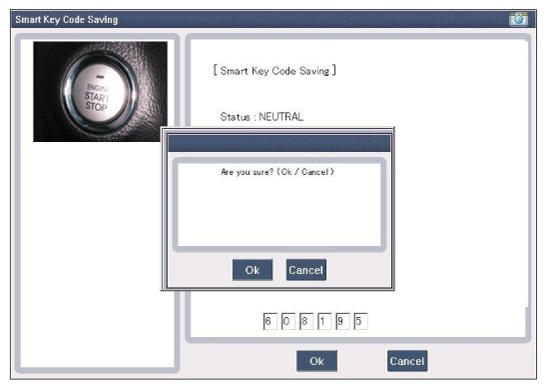

Fig 5: Scantool Display - Smart Key Code Saving (Press OK Button)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

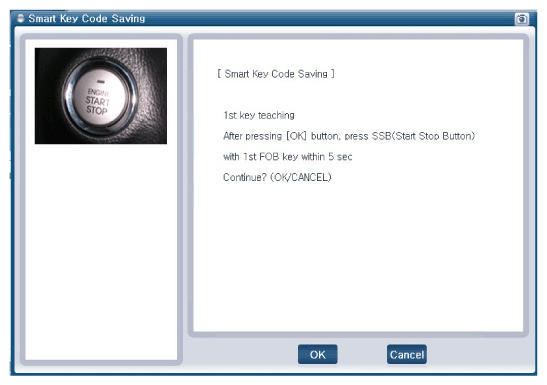

Fig 6: Scantool Display - Smart Key Code Saving (1st Key Teaching)
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

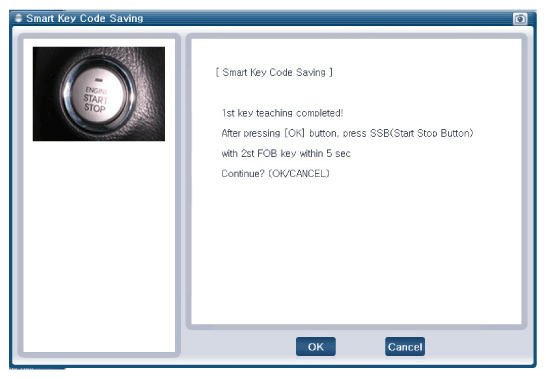

Fig 7: Scantool Display - Smart Key Code Saving (1st Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 8: Scantool Display - Smart Key Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

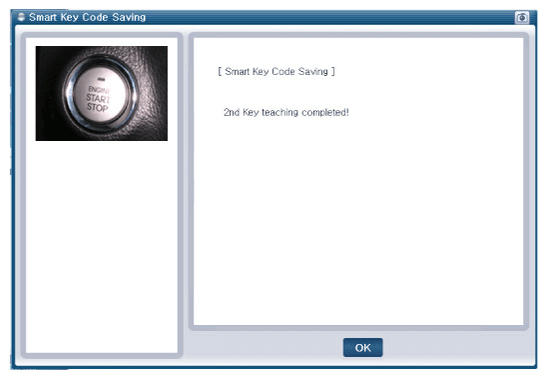

Fig 9: Scantool Display - Smart Key Code Saving (Second Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown in (Fig 10) when key teaching process is completed.

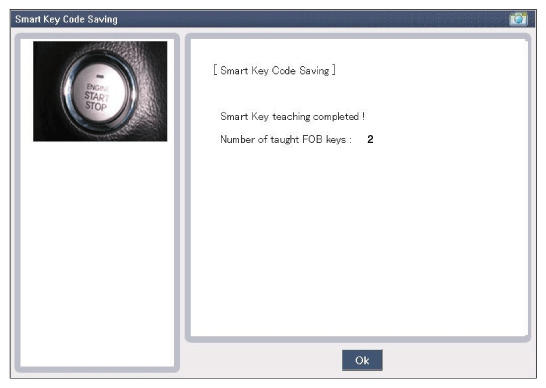

Fig 10: Screen Display - Smart Key Code Saving (Smart Key Teaching Completed)
Courtesy of HYUNDAI MOTOR AMERICA
