Circuit Diagram

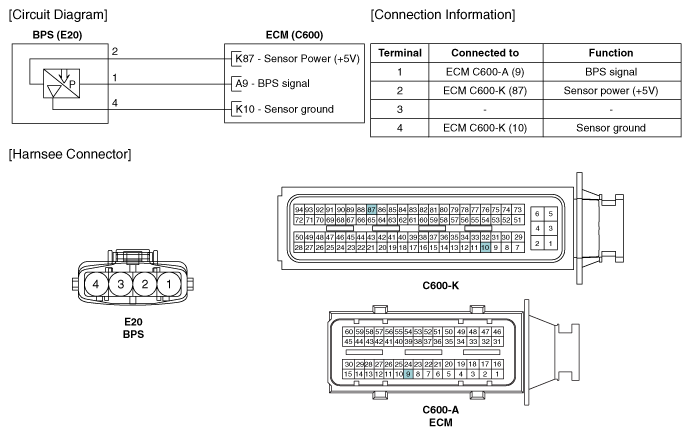

Fig 1: Boost Pressure Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
