BSD Unit Alignment

Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
Select "BSD Radar Calibration" procedure in BSD system.

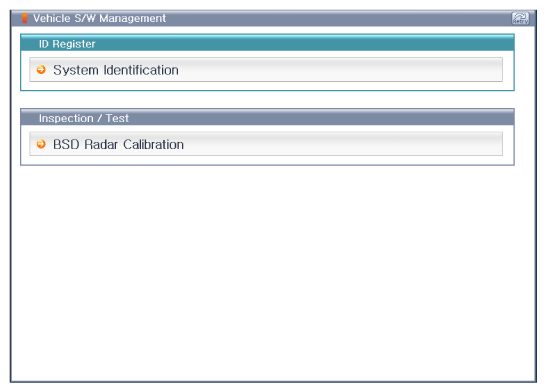

Fig 1: Scantool Display - Vehicle S/W Management (BSD Radar Calibration)
Courtesy of HYUNDAI MOTOR AMERICA
Perform the "BSD Radar Calibration" procedure according to the GDS screen message.

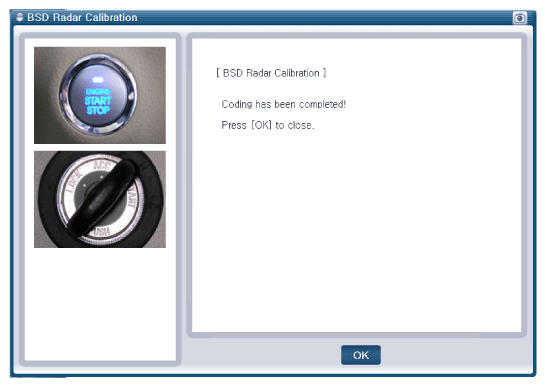

Fig 2: Scantool Display - BSD Radar Calibration (Coding Completed)

Courtesy of HYUNDAI MOTOR AMERICA
