Circuit Diagram

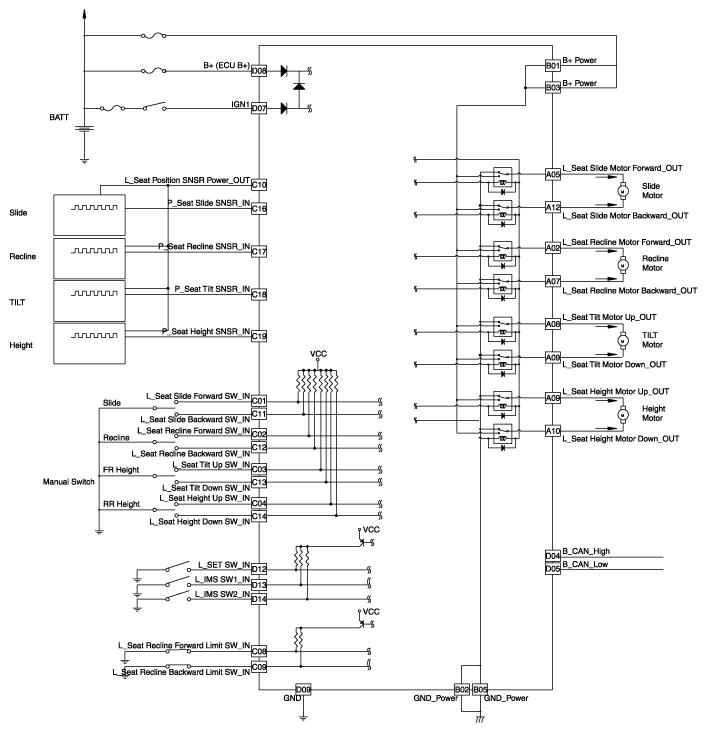

Fig 1: Memory Power Seat Unit Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
