Signal Waveform & Data

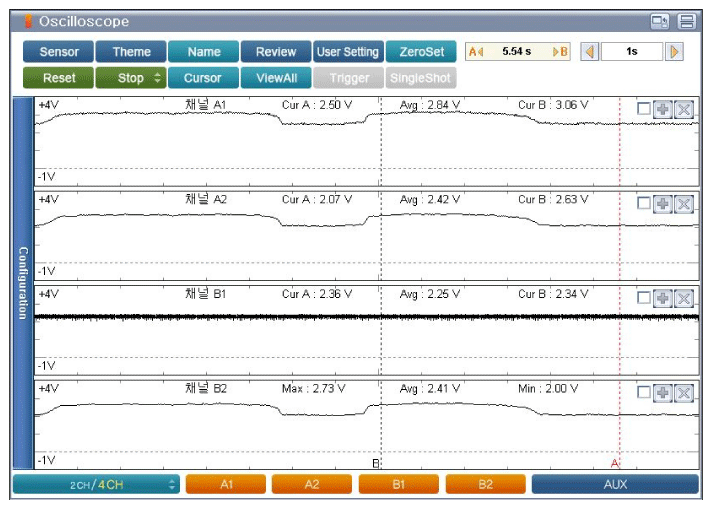

Fig 1: Screen Display - Normal Waveform Of Front Heated Oxygen Sensor (S1) (Engine Idle)
G12029538Courtesy of HYUNDAI MOTOR AMERICA
