GDS data analysis
- Connect GDS and select "DTC Analysis" mode
- Warm up the engine.

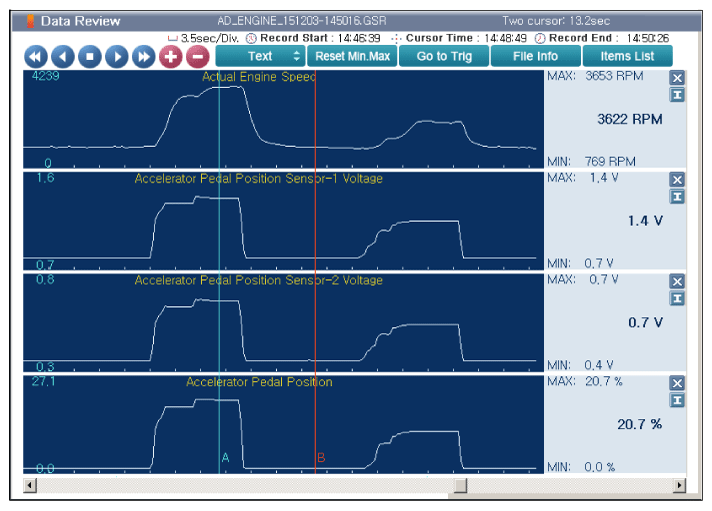

- Monitor the parameters related to DTC on the "Current Data" menu of the GDS (Fig 1) while press and depress gas pedal.
- Data Analysis
Condition GDS Sensor Data APS 1 APS 2 IG Key "ON" & Engine "OFF" Output voltages of APS 1 and APS 2 are in proportion to accelerating. APS 2 output voltage is half of APS 1 output voltage. Release a pedal fully 0.58~0.93V 0.29~0.47V Depress a pedal fully 3.85~4.35V 1.93~2.18V - Is data in accordance with "Data Analysis"?
YES
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
