Components And Components Location: Components

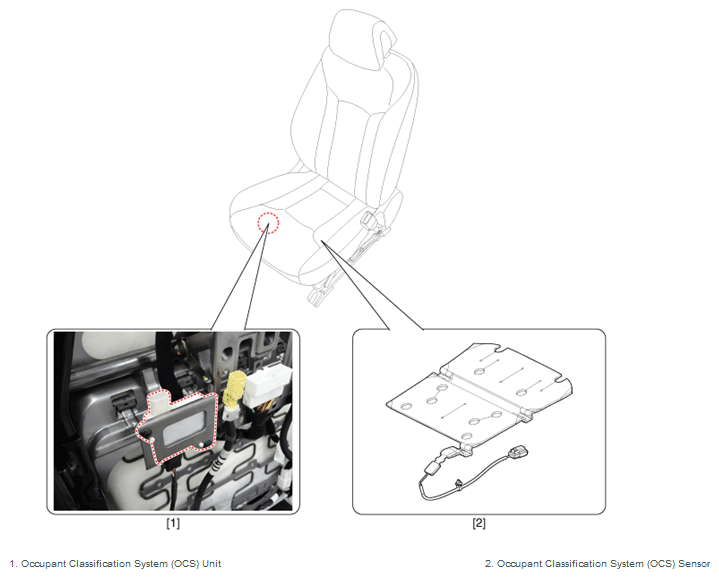

Fig 1: Occupant Classification System Components
G12026520Courtesy of HYUNDAI MOTOR AMERICA

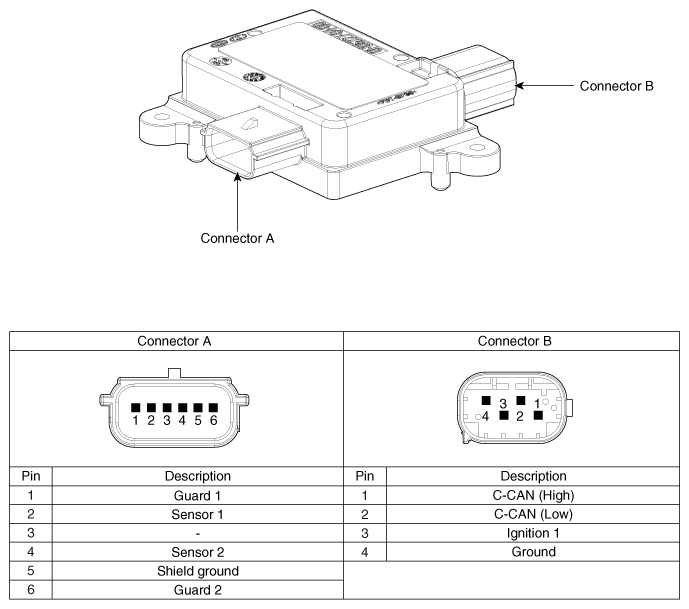

Fig 2: Occupant Classification System Unit Connector Terminals And Description Charts
G12026521Courtesy of HYUNDAI MOTOR AMERICA
