Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the center console duct (A) after loosening the mounting nut.
    Fig 1: Removing Center Console Duct
    G12026492Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the SRSCM connectors.

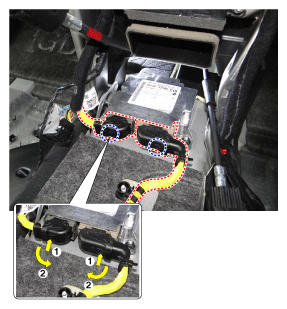

    Fig 2: Disconnecting SRSCM Connectors
    G12026493Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the SRSCM (A) after loosening the mounting nuts.
    Fig 3: Removing SRSCM Mounting Nuts
    G12026494Courtesy of HYUNDAI MOTOR AMERICA
