Variant Coding Procedure

■ On-line type on GDS

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

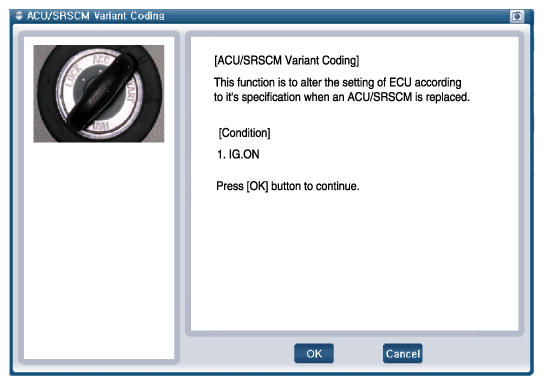

   1. Initial ACU Variant Coding screen
      Fig 1: Screen Display - Initial ACU Variant Coding

      Courtesy of HYUNDAI MOTOR AMERICA

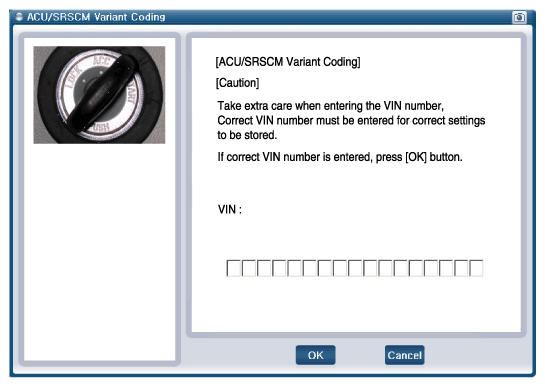

   2. VIN Code entering screen
      Fig 2: Screen Display - VIN Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA

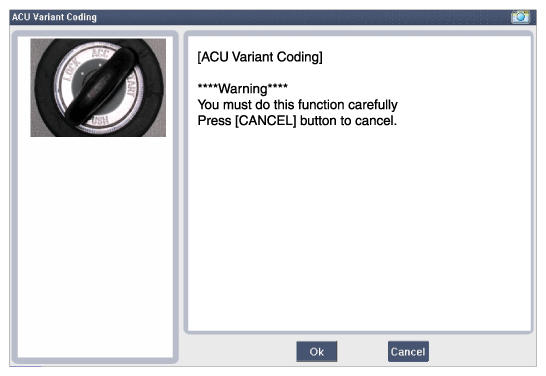

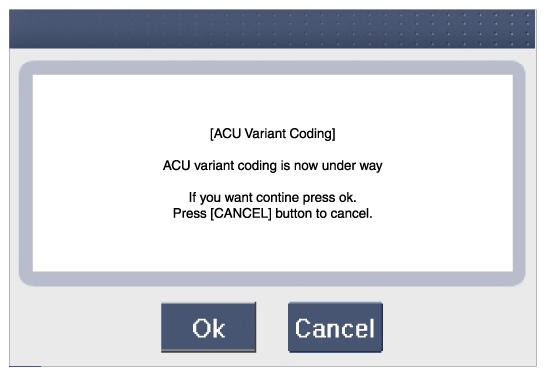

   3. Variant Coding's proceeding screen-1
      Fig 3: Screen Display - Variant Coding Proceeding-1

      Courtesy of HYUNDAI MOTOR AMERICA

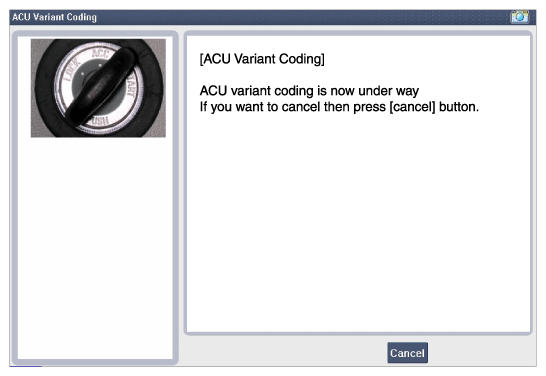

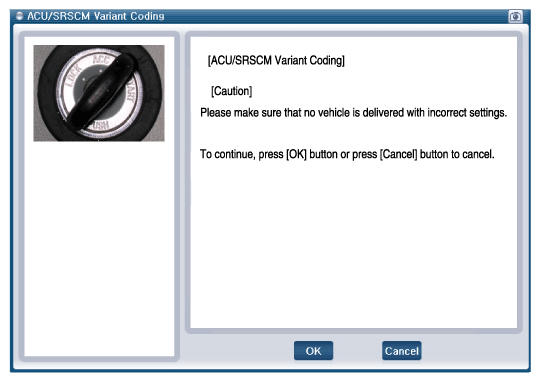

   4. Variant Coding's proceeding screen-2
      Fig 4: Screen Display - Variant Coding Proceeding-2

      Courtesy of HYUNDAI MOTOR AMERICA

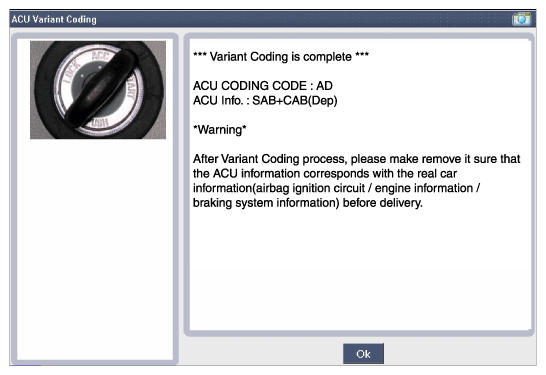

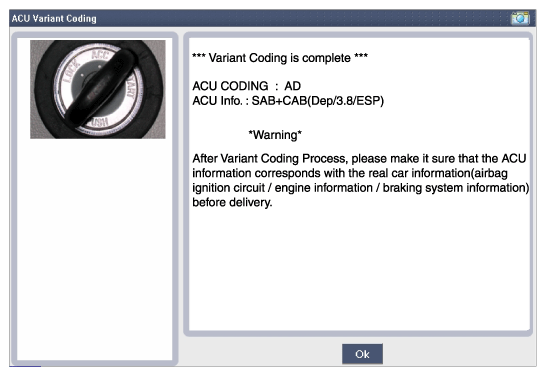

   5. Variant Coding is completed
   Fig 5: Screen Display - Variant Coding Completed

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   1. This screen is shown when you try variant coding on the SRSCM which has been performed before. Refer to (Fig 6).
      Fig 6: Screen Display - ACU/SRSCM Variant Coding On Previous Coded SRSCM

      Courtesy of HYUNDAI MOTOR AMERICA
   2. This screen is shown when communication failure has occurred. Refer to (Fig 7).
   Fig 7: Screen Display - ACU/SRSCM Variant Coding Communication Failure

   Courtesy of HYUNDAI MOTOR AMERICA

■ Off-line type on GDS (Use when not connected to the Internet)

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

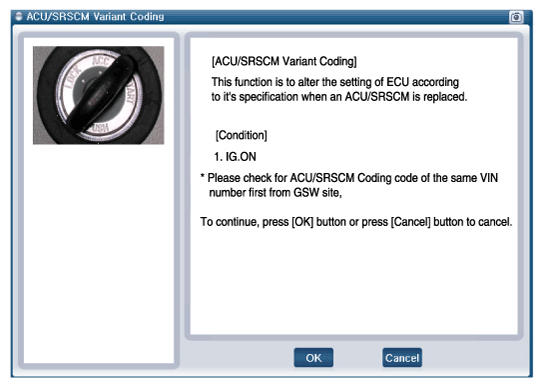

   1. Initial ACU Variant Coding screen
      Fig 8: Screen Display - Initial ACU Variant Coding

      Courtesy of HYUNDAI MOTOR AMERICA

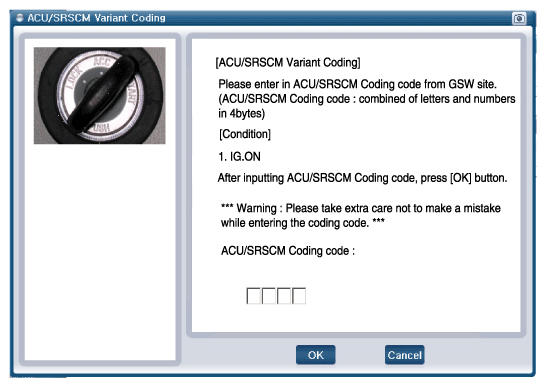

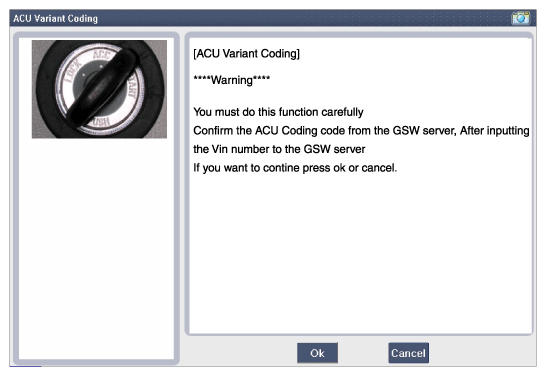

   2. ACU Coding Code entering screen
      Fig 9: Screen Display - ACU Coding Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA
   3. Rechecking ACU Coding Code entering screen
      Fig 10: Screen Display - ACU Coding Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA

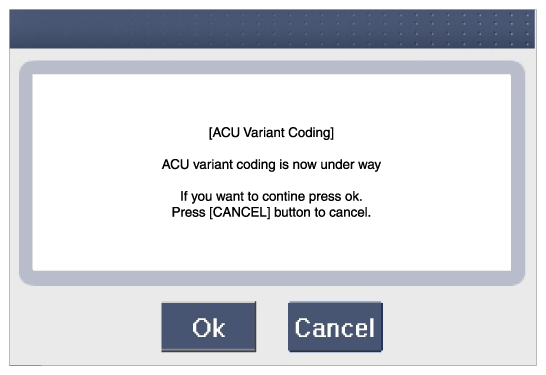

   4. Variant Coding's proceeding screen-1
      Fig 11: Screen Display - Variant Coding Proceeding-1

      Courtesy of HYUNDAI MOTOR AMERICA
   5. Variant Coding's proceeding screen-2
      Fig 12: Screen Display - Variant Coding Proceeding-2

      Courtesy of HYUNDAI MOTOR AMERICA
   6. Variant Coding is completed
   Fig 13: Screen Display - Variant Coding Completed

   Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

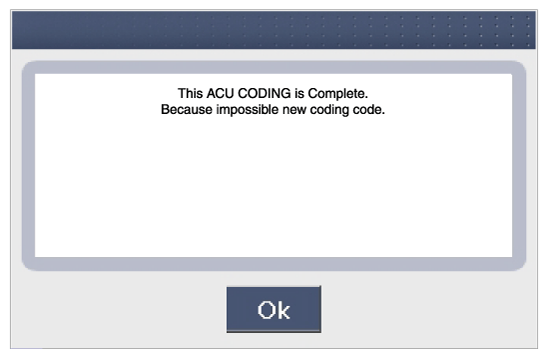

   1. This screen is shown when you try variant coding on the SRSCM which has been performed before. Refer to (Fig 14).
      Fig 14: Screen Display - ACU Coding Complete On Previous Coded SRSCM

      Courtesy of HYUNDAI MOTOR AMERICA
