Schematic Diagrams: Notes

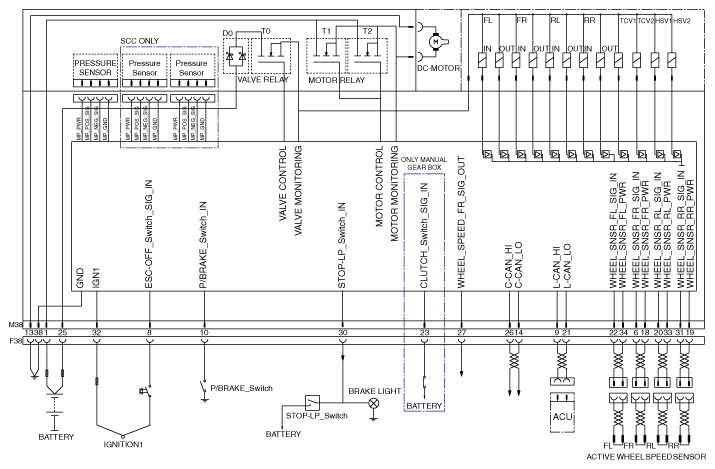

Fig 1: Electronic Stability Control System Schematic
G12027063Courtesy of HYUNDAI MOTOR AMERICA
