Elantra Value Edition
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L
>>
Variable Charge Motion Actuator (VCMA)
>>
Schematic Diagrams
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram

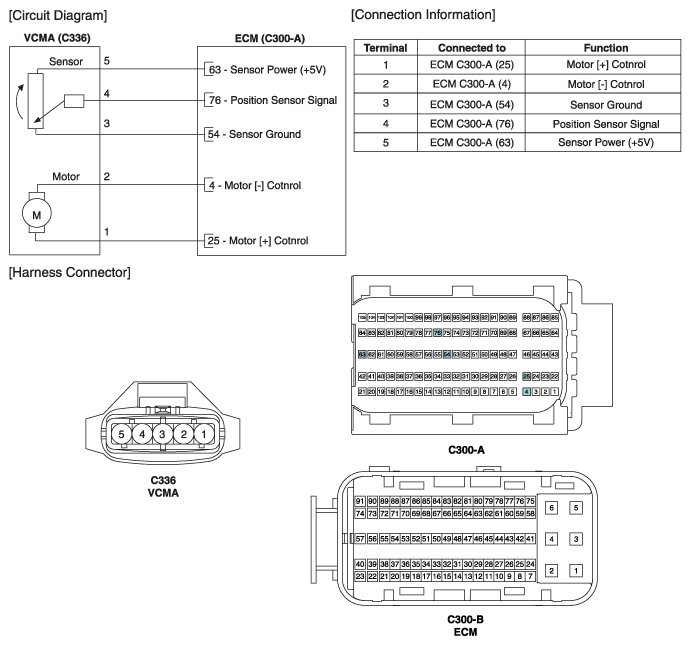

Fig 1: Variable Charge Motion Actuator Circuit
Courtesy of HYUNDAI MOTOR AMERICA
