Repair Procedures: Removal

  1. Disconnect the negative(-) battery terminal.
  2. Remove the crash ped lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

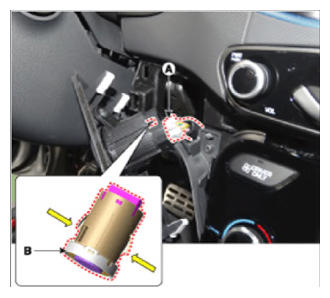

  3. Remove the start/stop button (B) after disconnect the connector (A).
    G13188955Courtesy of HYUNDAI MOTOR AMERICA
