Components Location

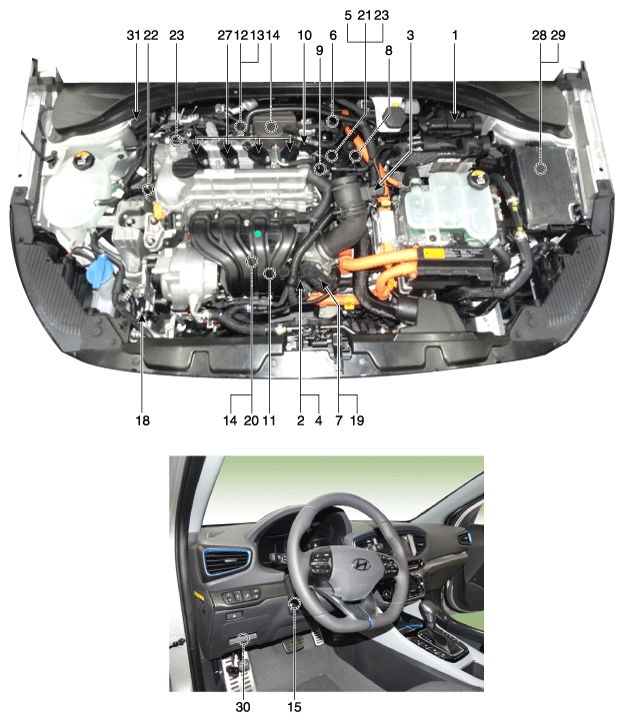

Fig 1: Engine Compartment Components (1 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

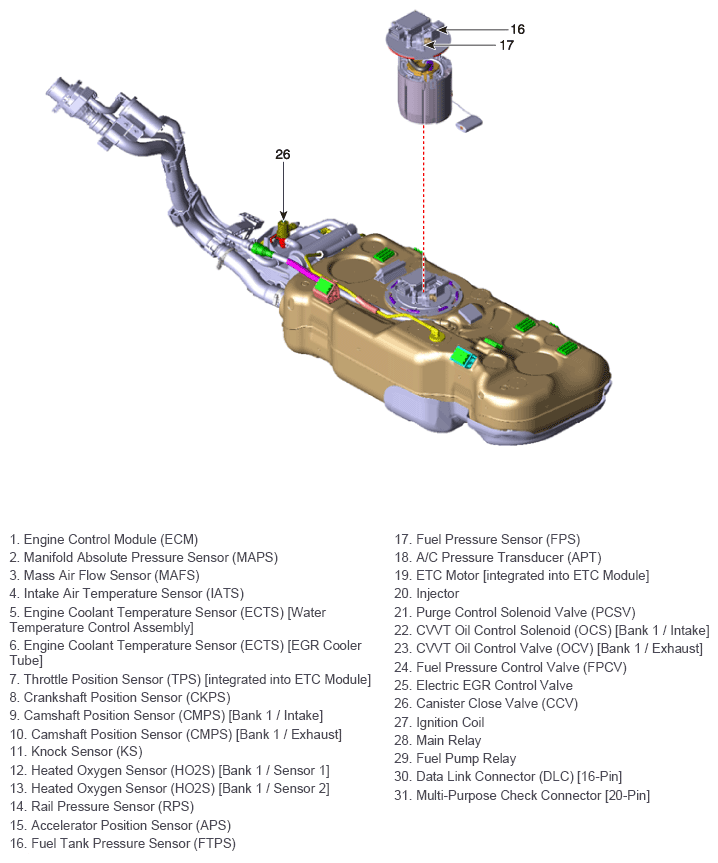

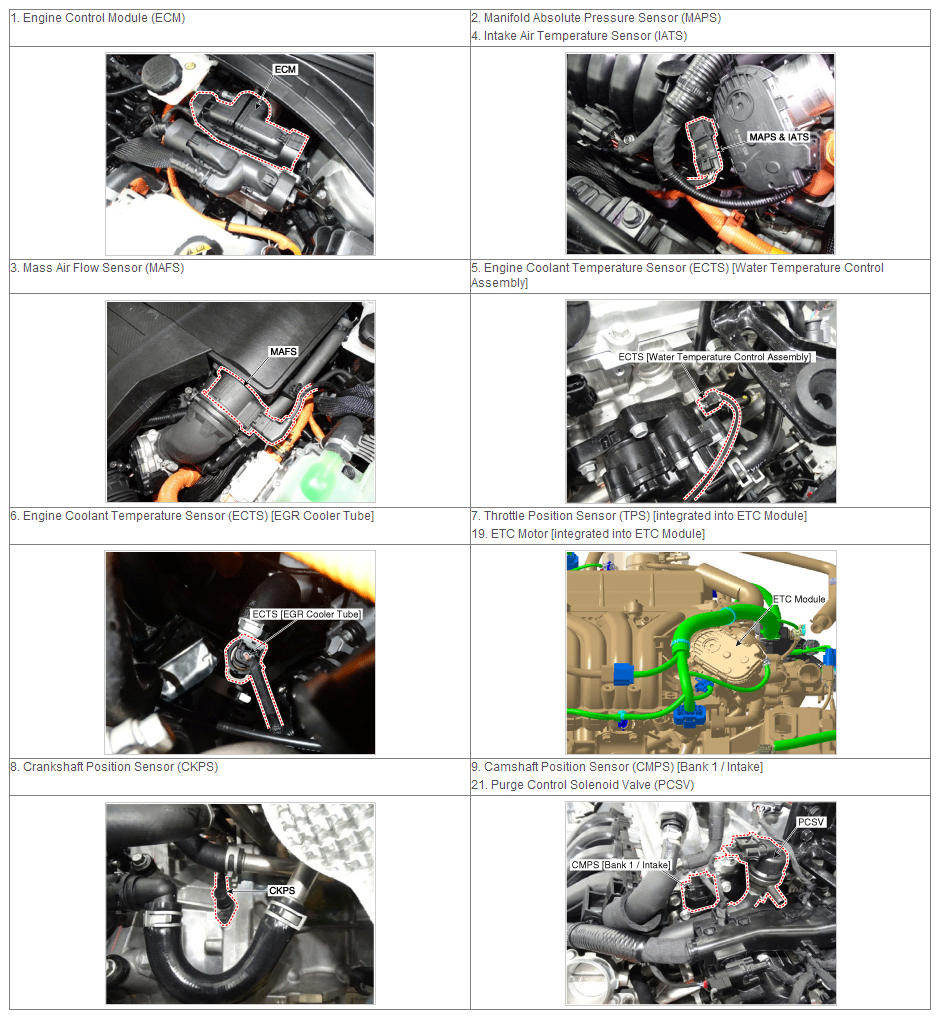

Fig 2: Engine Compartment Components (2 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

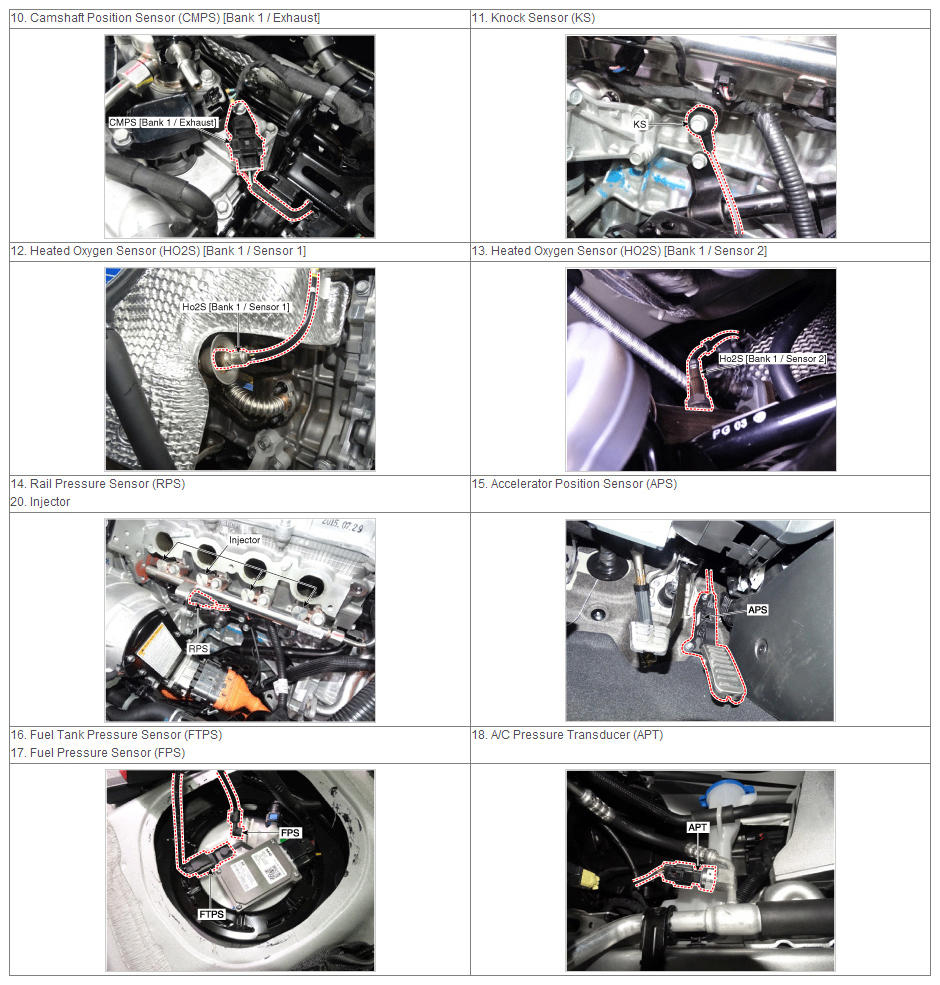

Fig 3: Engine Compartment Components (3 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA

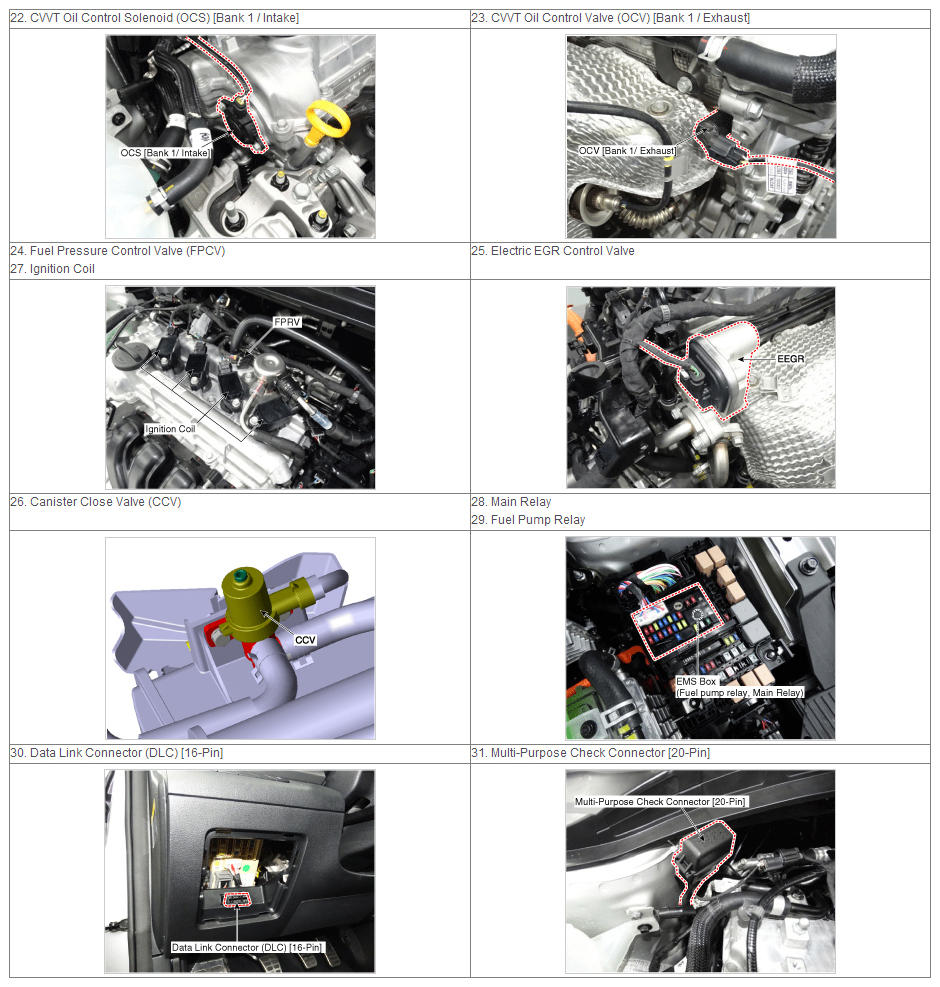

Fig 4: Engine Compartment Components (4 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 5: Engine Compartment Components (5 Of 5)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
