Calibration Mode

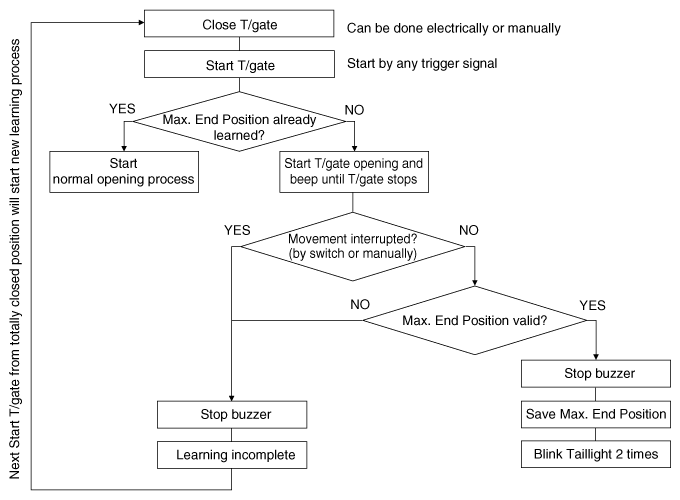

Fig 1: Calibration Mode Troubleshooting Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
