System Initialization

System initialization is needed to recognize the closing position of the liftgate to power liftgate module.

The initialization process after battery power reset, system initialization is needed to recognize the maximum opening and closing liftgate position exactly.

The power liftgate operates normally after system initialization is completed.

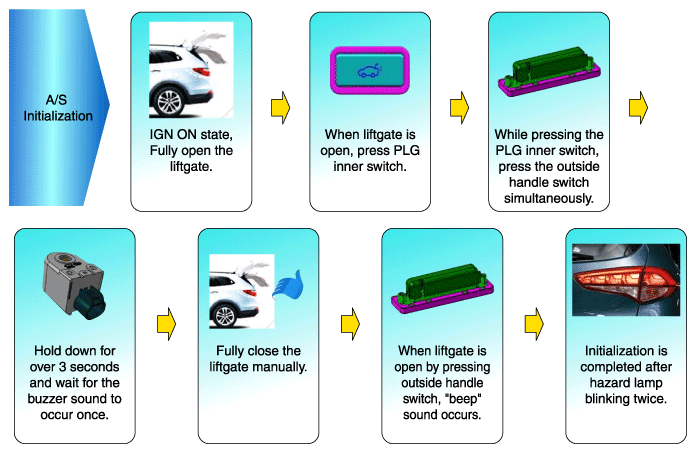

Fig 1: Power Liftgate System Initialization Procedure Chart
G12036237Courtesy of HYUNDAI MOTOR AMERICA
