Components And Components Location: Components

Fig 1: Timing System Components With Torque Specifications (1 Of 2)
G12032704Courtesy of HYUNDAI MOTOR AMERICA

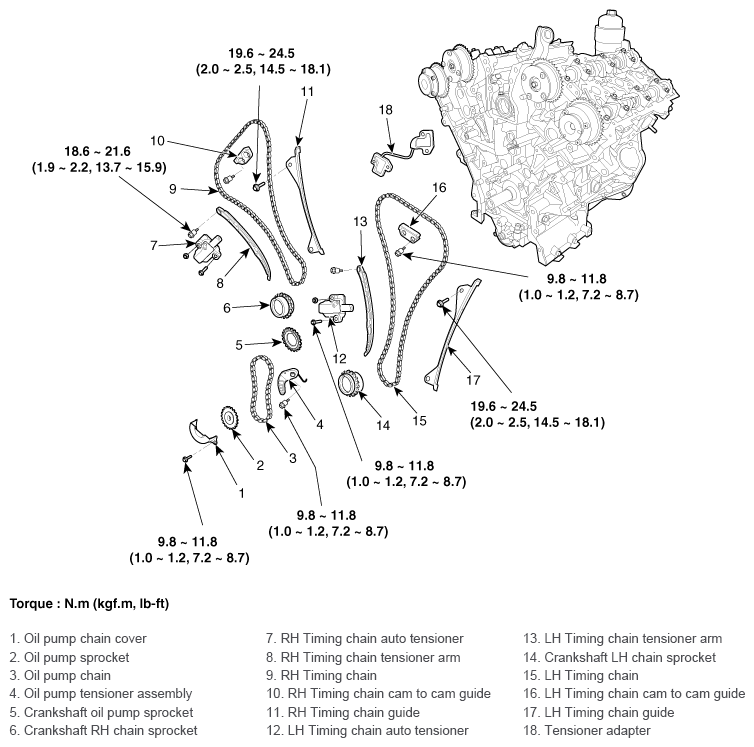

Fig 2: Timing System Components With Torque Specifications (2 Of 2)
G12032705Courtesy of HYUNDAI MOTOR AMERICA
