Hyundai
>>
2017
>>
Santa Fe Sport 2.0T, AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

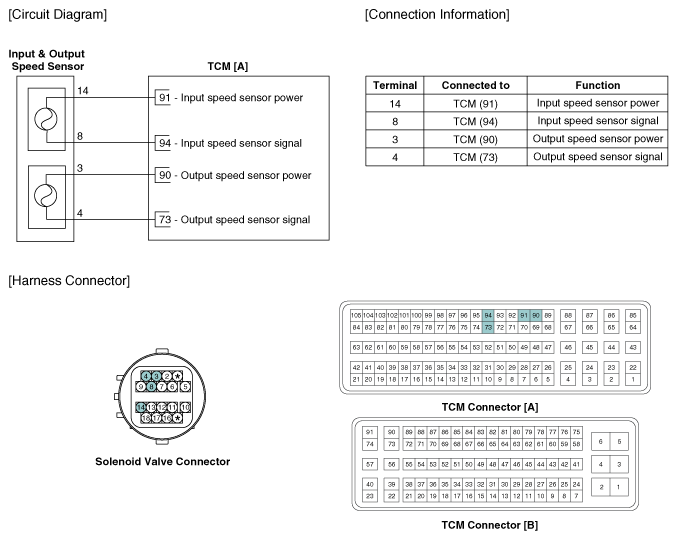

Fig 1: Input Speed Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
