Repair Procedures: Removal

Remove the floor console.
(Refer to FLOOR CONSOLE )
Remove the air duct.
Disconnect sports mode connector (A).

Fig 1: Locating Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the shift cable (A).

Fig 2: Disconnecting Shift Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the shift lever assembly (A) by removing the bolts (C-4 ea).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

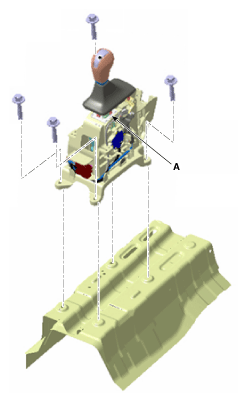

Fig 3: Locating Shift Lever Assembly With Bolts
