Repair Procedures: Removal

Perform the oil pressure characteristics backup procedure using the GDS when replacing with a new TCM.

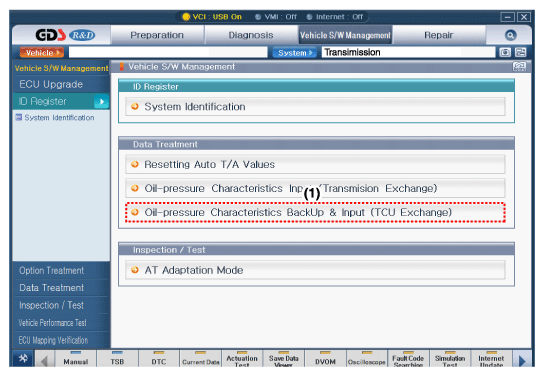

Fig 1: Scantool Display - Oil Pressure Characteristics Backup Procedure (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

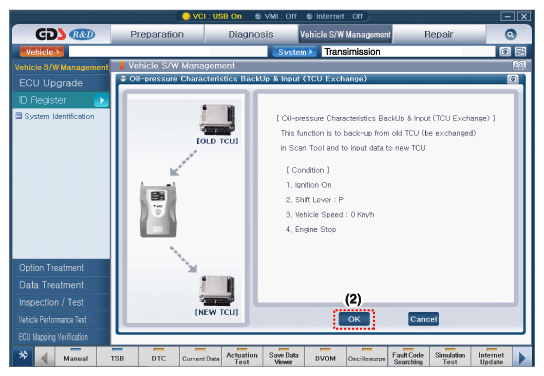

Fig 2: Scantool Display - Oil Pressure Characteristics Backup Procedure (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

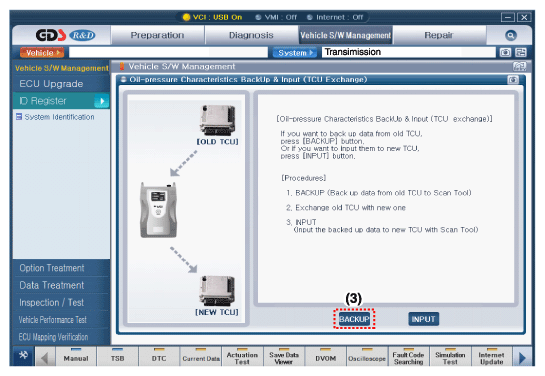

Fig 3: Scantool Display - Oil Pressure Characteristics Backup Procedure (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA
Turn ignition switch OFF.
Disconnect the negative (-) battery cable.
Disconnect the TCM Connector (A).

Fig 4: Locating TCM Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the mounting bolts (A) and nut (B), and then remove the TCM (C).

Fig 5: Locating TCM, Mounting Bolts And Nut
Courtesy of HYUNDAI MOTOR AMERICA
After removing the installation nuts (A) and screws (B), remove the TCM from the bracket.
