Signal Waveform & Data

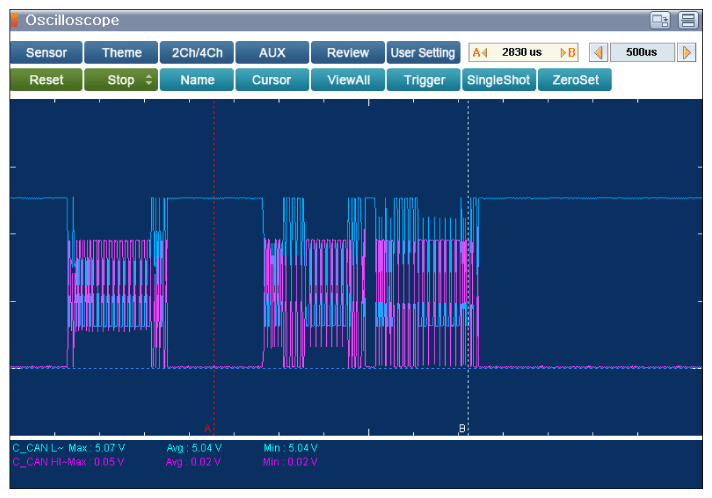

Fig 1: Scantool Display - C_CAN Low & High Signal Waveform
G12037067Courtesy of HYUNDAI MOTOR AMERICA

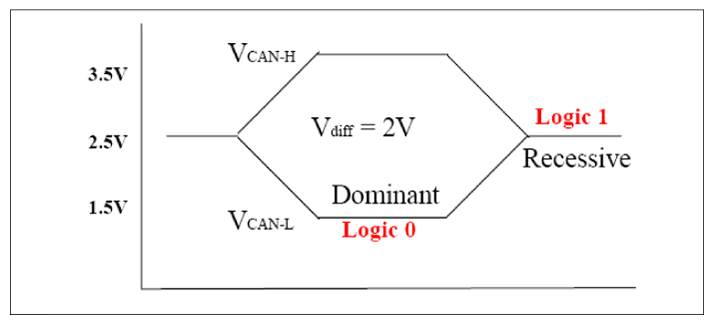

Fig 2: Scantool Display - C_CAN Bus Voltage Level (High Speed CAN)
G12037068Courtesy of HYUNDAI MOTOR AMERICA
