Operation Principle: Notes

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.

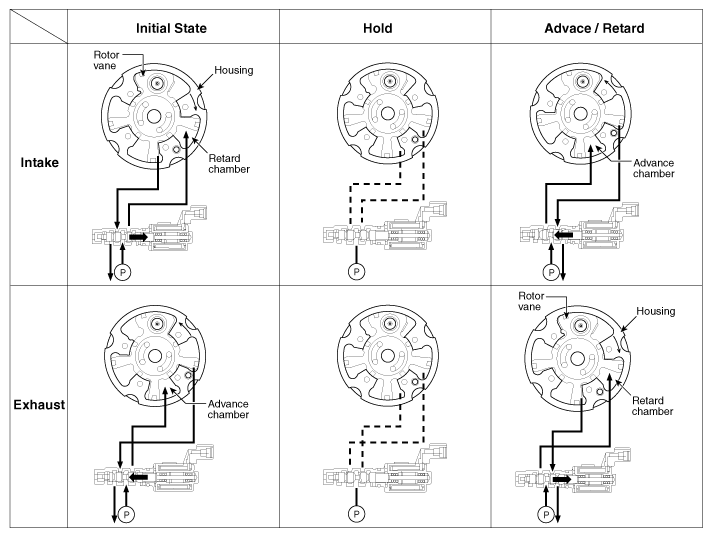

Fig 1: Continuous Variable Valve Timing System Operation Diagram

Courtesy of HYUNDAI MOTOR AMERICA
