Signal Waveform & Data

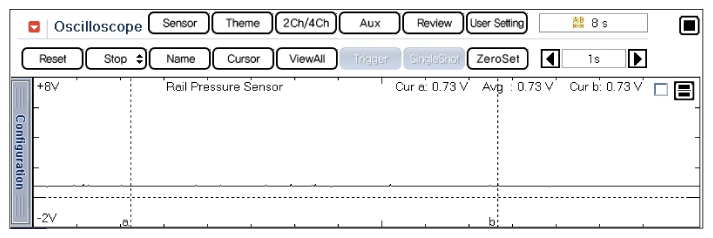

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G12037082Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Screen Display - Rail Pressure Sensor
G12037083Courtesy of HYUNDAI MOTOR AMERICA

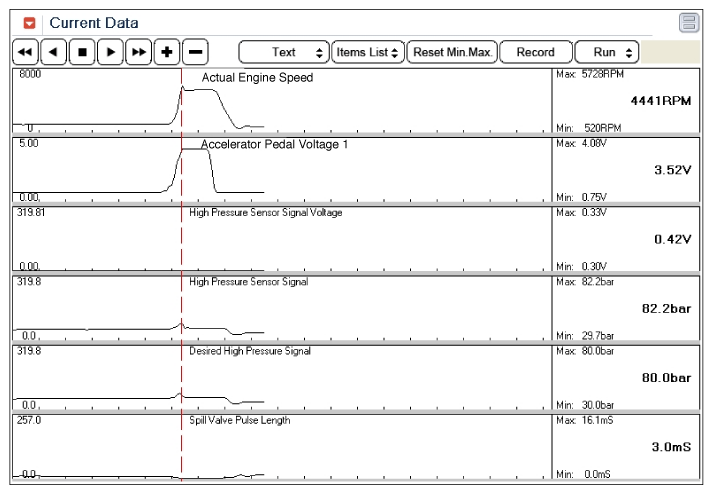

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G12037084Courtesy of HYUNDAI MOTOR AMERICA
