Check Timing

IG "OFF"
Monitor these signal waveforms from CAM and Crankshaft position Sensor are correctly aligned.
Reference: The 17th CKP signal after the missing tooth is aligned with the high voltage CMP signal.

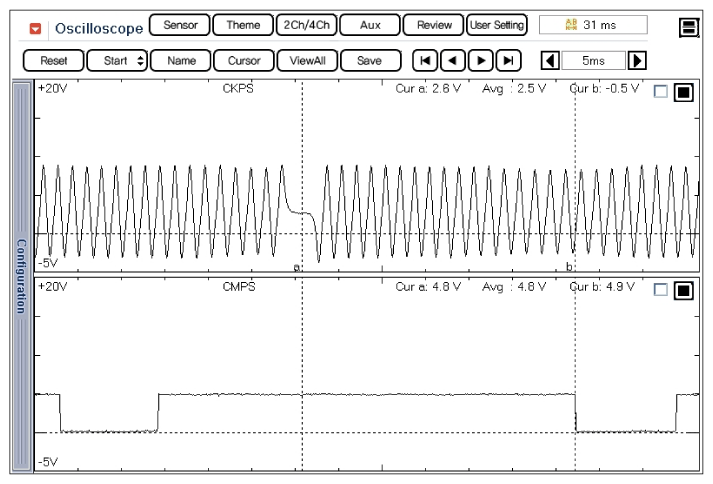

Fig 1: Screen Display - CAM And Crankshaft Position Sensor Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA

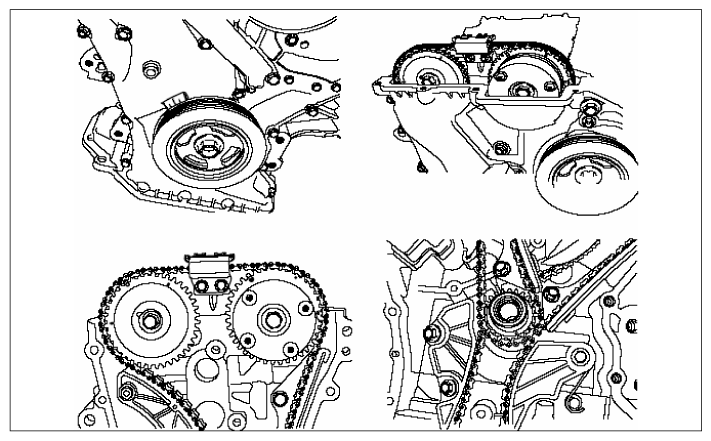

Fig 2: Checking Timing Marks
Courtesy of HYUNDAI MOTOR AMERICA
Are all timing marks aligned correctly?
YES
- Go to "Check Fuel Pressure" as below
NO
- Check that Cam, Crank and Oil pump sprocket timing marks are correctly aligned. Repair or readjust as necessary. Go to "VERIFICATION OF VEHICLE REPAIR " procedure
