Signal Waveform & Data

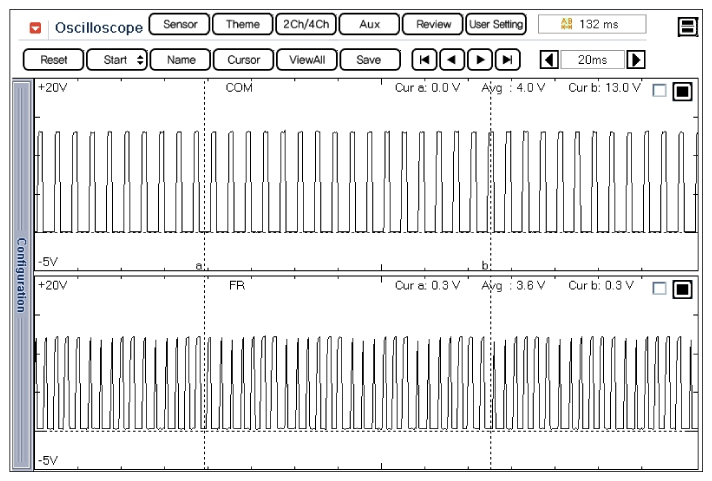

Fig 1: Normal Waveforms Of COM & FR Terminal Of Alternator At Idle
G12037988Courtesy of HYUNDAI MOTOR AMERICA

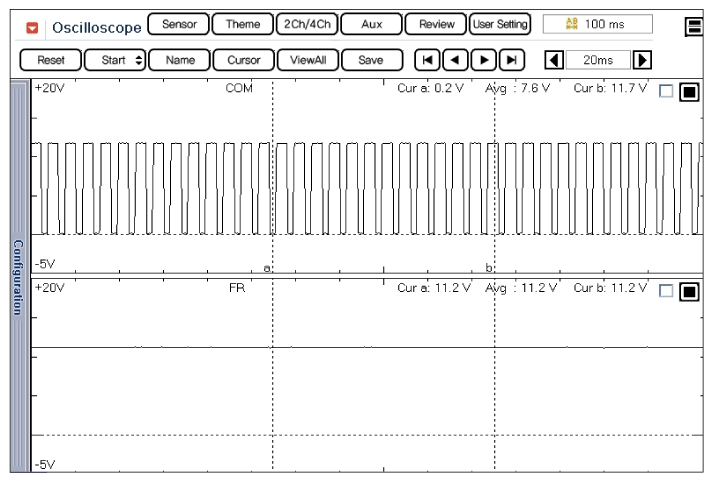

Fig 2: Normal Waveforms Of COM & FR Terminal Of Alternator With Connector Disconnected Condition At IG ON
G12037989Courtesy of HYUNDAI MOTOR AMERICA
