Signal Waveform & Data

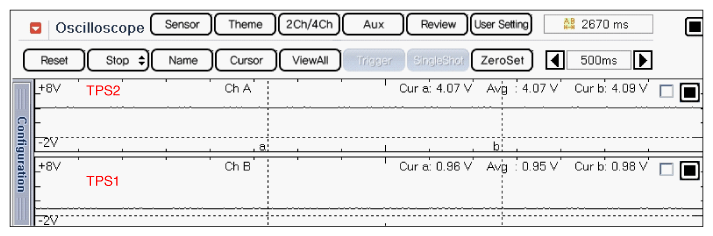

Fig 1: Normal Waveform Of TPS1 & TPS2 With Acceleration Pedal Not Depressed With IG ON

Courtesy of HYUNDAI MOTOR AMERICA

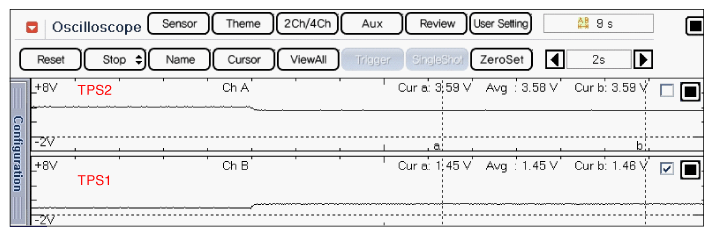

Fig 2: Normal Waveform Of TPS1 & TPS2 With Acceleration Pedal Depressed With IG ON

Courtesy of HYUNDAI MOTOR AMERICA

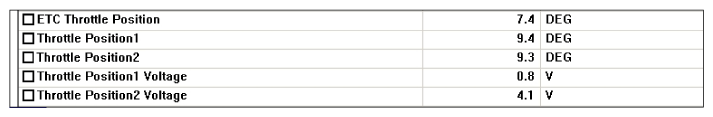

Fig 3: Normal Data Of TPS1 & TPS2 With IG ON Condition

Courtesy of HYUNDAI MOTOR AMERICA

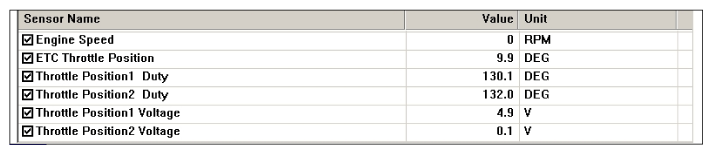

Fig 4: Normal Data Of TPS1 & TPS2 With Open Condition

Courtesy of HYUNDAI MOTOR AMERICA

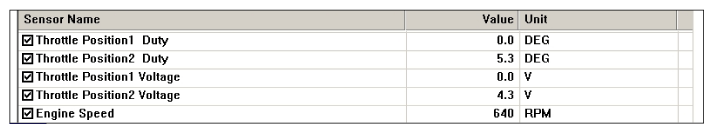

Fig 5: Screen Display - Normal Data Of TPS1 & TPS2 With Short To Ground In TPS1 Circuit

Courtesy of HYUNDAI MOTOR AMERICA
