Components And Components Location: Components

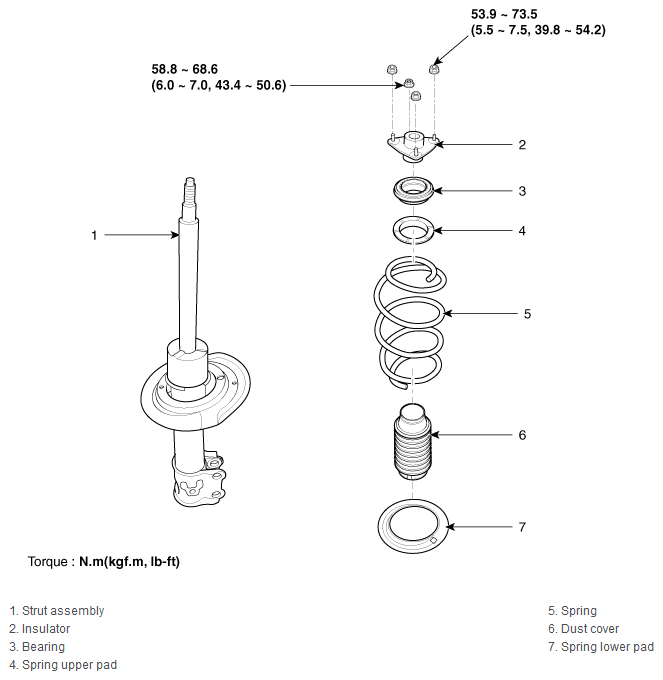

Fig 1: Front Strut Assembly Components With Torque Specifications
G12032891Courtesy of HYUNDAI MOTOR AMERICA
