Check the Alignment of Shift Cable

Move TGS lever to "N" position and unfasten Shift cable - Manual Control Lever nut and Transmission Range sensor 2bolts.
Set Manual Control Lever in "N" position.

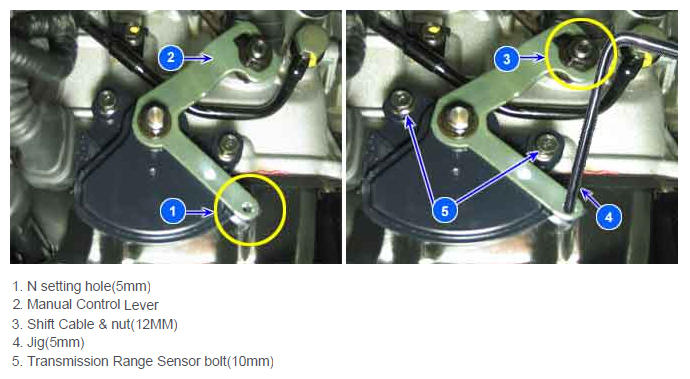

Fig 1: Inserting N Setting Jig Into N Setting Hole
Courtesy of HYUNDAI MOTOR AMERICA
Insert "N setting Jig (Ø 5)" into the "N setting hole"
Fasten the Shift cable - Manual Control Lever nut and Transmission Range sensor 2bolts.
Beware of pull or push between Shift Cable and Manual Control Lever.
Remove the Jig from "N setting hole"

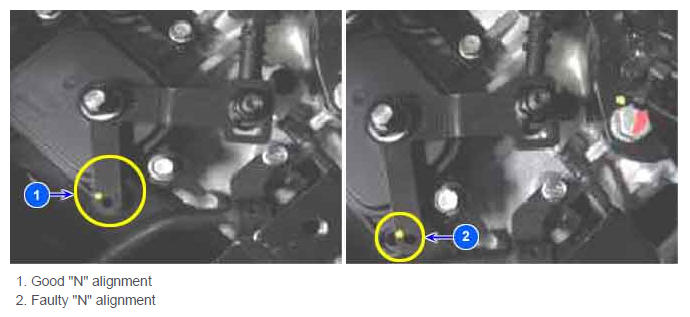

Fig 2: Removing Jig From N Setting Hole
Courtesy of HYUNDAI MOTOR AMERICA
Is the problem solved?
YES
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "Check the Shift Lever " procedure.
