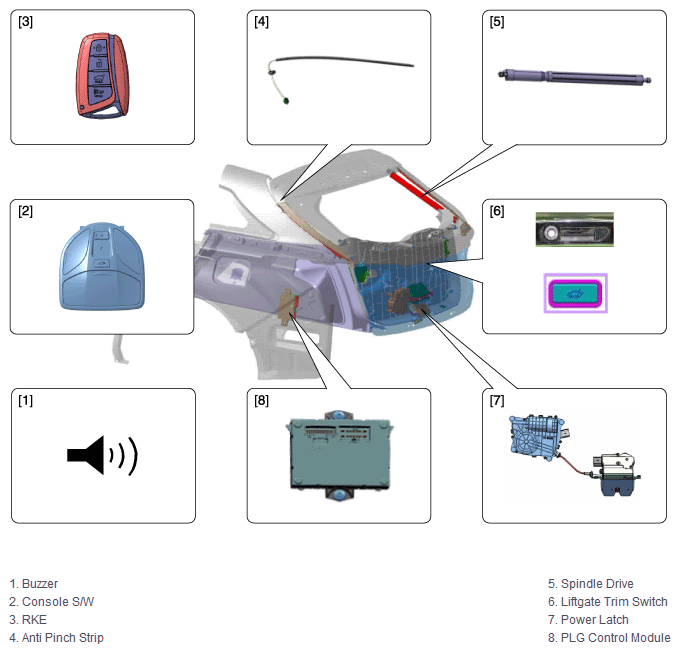

Component Location

G12036217Courtesy of HYUNDAI MOTOR AMERICA

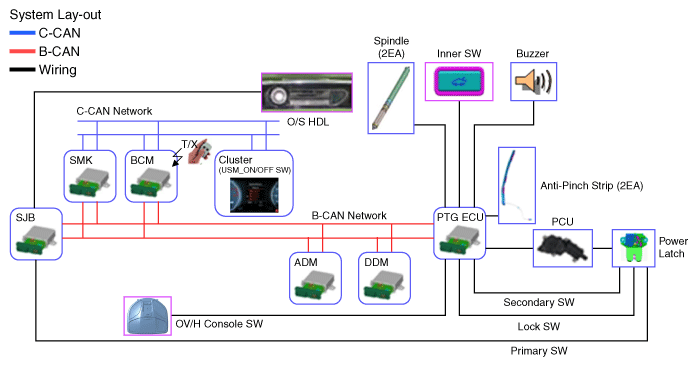

Fig 1: Power Liftgate Module Communication Diagram
G12036218Courtesy of HYUNDAI MOTOR AMERICA
