Circuit Diagram

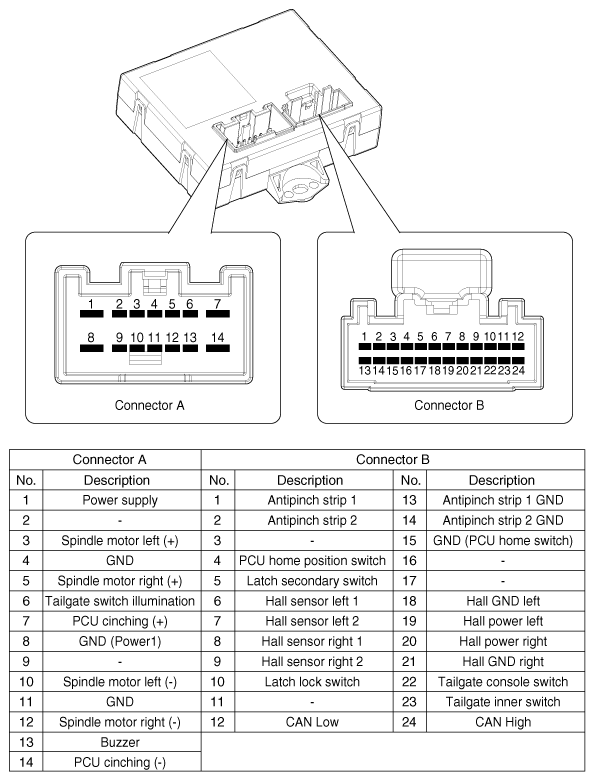

Fig 1: Power Liftgate Unit Connector Terminals Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
