Block Diagram

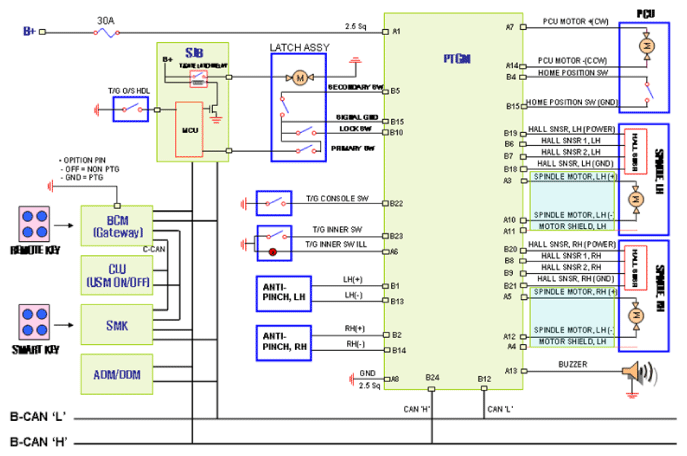

Fig 1: Power Liftgate Module Block Diagram
G12036219Courtesy of HYUNDAI MOTOR AMERICA

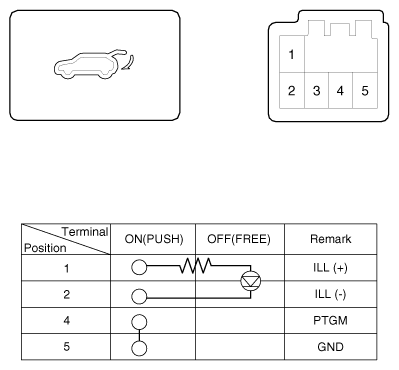

Fig 2: Power Liftgate Module Connector Terminals Continuity Chart
G12036220Courtesy of HYUNDAI MOTOR AMERICA
