Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

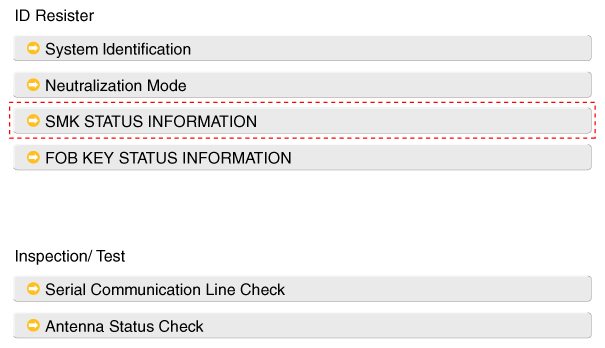

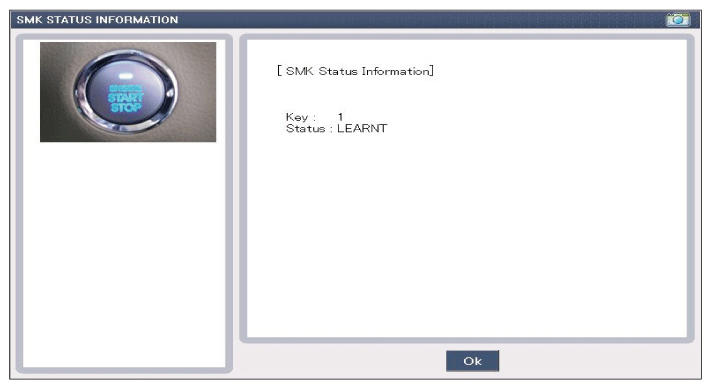

  2. After IG ON, select the "SMK STATUS INFO".
    G12037452Courtesy of HYUNDAI MOTOR AMERICA
    G12037453Courtesy of HYUNDAI MOTOR AMERICA
