Liftgate Switch

  1. Check for continuity between the liftgate latch terminals.

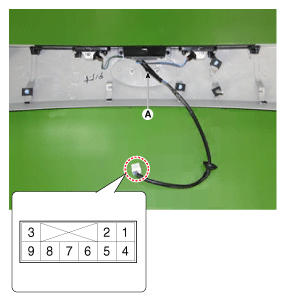

    Fig 1: Checking Continuity Between Liftgate Latch Terminals
    G12037434Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, inspect the switch
Fig 2: Liftgate Latch Terminals Continuity Chart
G12037435Courtesy of HYUNDAI MOTOR AMERICA
