Repair Procedures: Inspection

Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.

Fig 1: Locating Key Warning Switch Connector (A)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Locating Ignition Switch Connector (B)
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

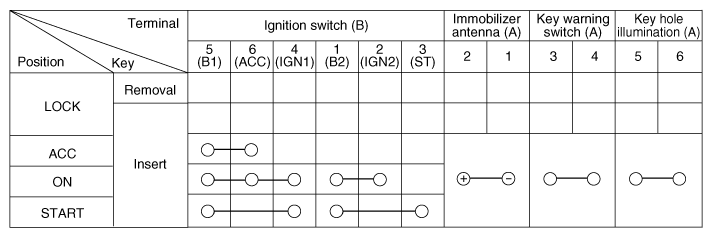

Fig 3: Ignition Switch And Key Warning Switch Connector Terminals Continuity Chart

G12036474

Courtesy of HYUNDAI MOTOR AMERICA
