Driver Power Window Switch

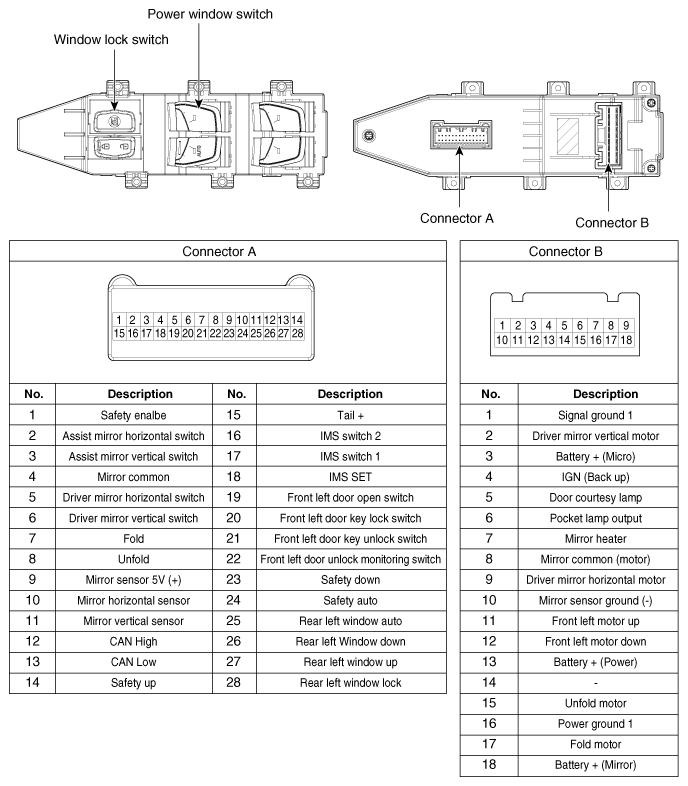

Fig 1: Driver Power Window Switch Connector Terminal Descriptions Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
