Signal Waveform & Data

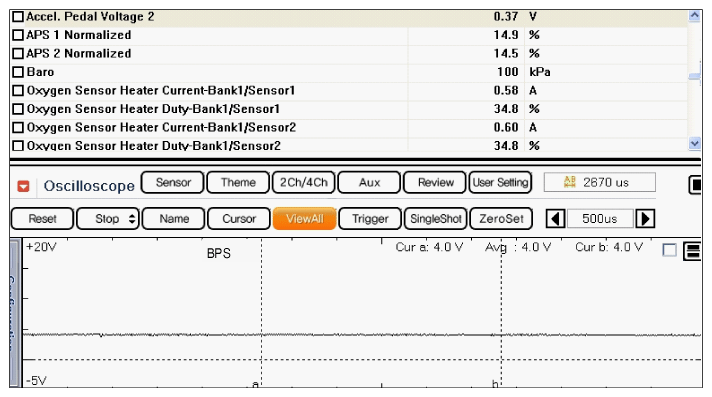

Fig 1: Scantool Display - Normal Data & Waveform Of BPS At Approx 1 ATM Condition
G12038107Courtesy of HYUNDAI MOTOR AMERICA
