Components And Components Location: Components: Notes

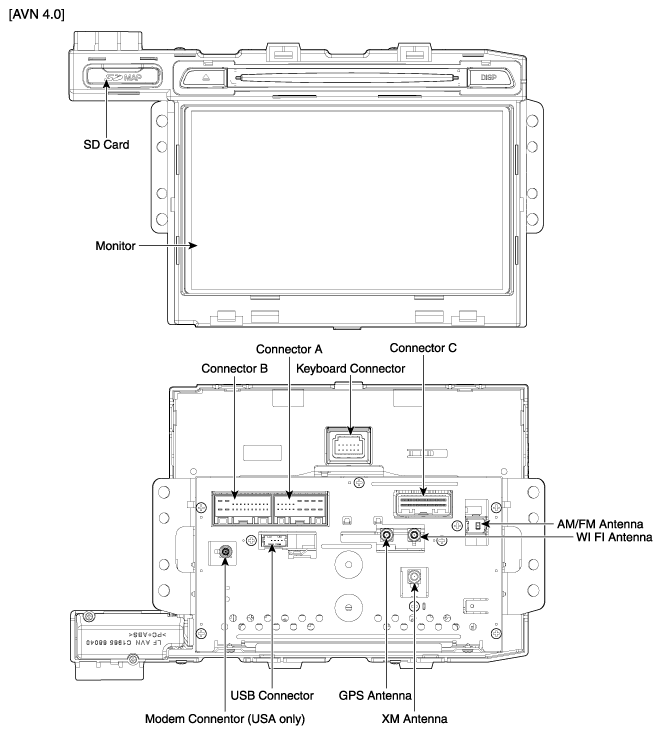

Fig 1: AVN (Audio Video Navigation) Head Unit Connectors
G11988491Courtesy of HYUNDAI MOTOR AMERICA
