Component Location

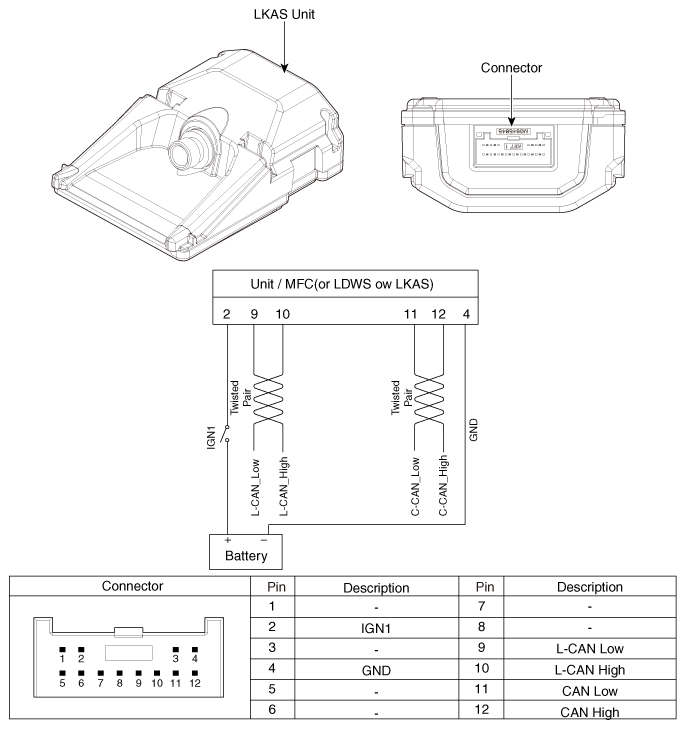

Fig 1: Multi-Function Camera Unit Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
