MFC Variant Coding

MFC variant coding makes it possible to operate functions for each vehicle type. If the variant coding differs from the vehicle specification, the "variant coding error" DTC is displayed.

1. Procedure for coding variants
   1. You should read the specification information for the MFC that is installed in the vehicle before replacing it with a new M
   2. Select specification information from G-SCAN's additional function.
   Fig 1: Screen Display - MFC Variant Coding

   Courtesy of HYUNDAI MOTOR AMERICA
2. Enter the value of the specification read in procedure (2) in the new MFC.

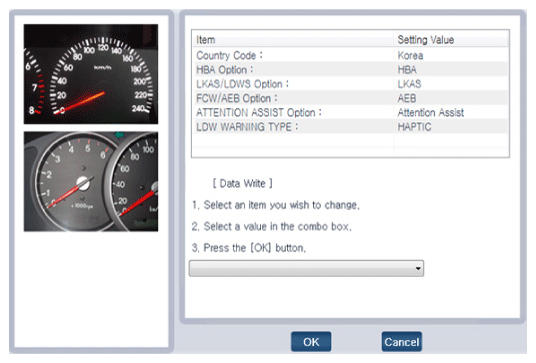

   Fig 2: Screen Display - Enter Value Of Specification In MFC (1 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA

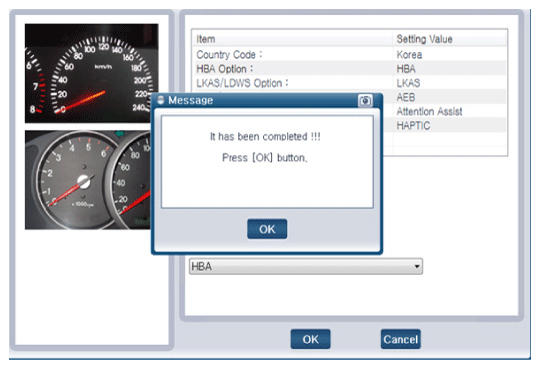

   Fig 3: Screen Display - Enter Value Of Specification In MFC (2 Of 2)

   Courtesy of HYUNDAI MOTOR AMERICA
