[Auto Detected Configuration Reset]

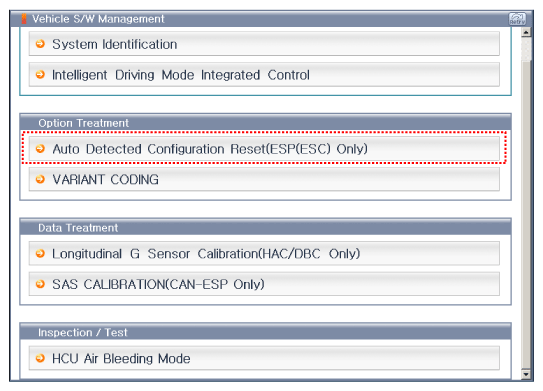

Fig 1: Scantool Display - Vehicle S/W Management
G11987837Courtesy of HYUNDAI MOTOR AMERICA

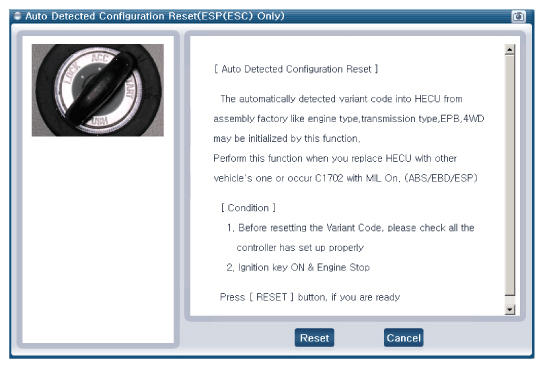

Fig 2: Scantool Display - Auto Detected Configuration Reset
G11987838Courtesy of HYUNDAI MOTOR AMERICA

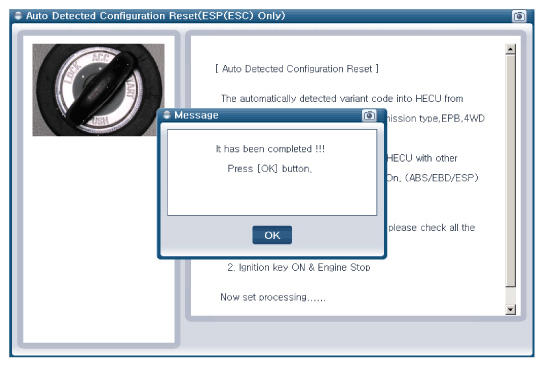

Fig 3: Scantool Display - Auto Detected Configuration Reset (Completed)
G11987839Courtesy of HYUNDAI MOTOR AMERICA
