Signal Waveform & Data

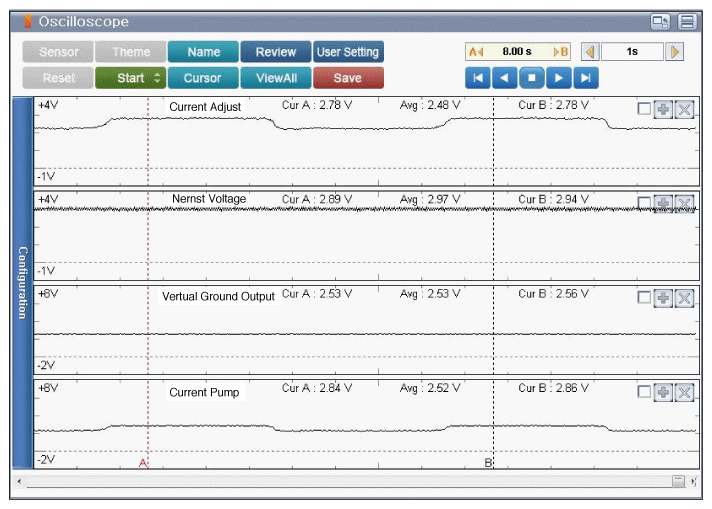

Fig 1: Scantool Display - Signal Waveform And Data

Courtesy of HYUNDAI MOTOR AMERICA

Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2 V and 3 V periodically.

Waveform of sensor Virtual Ground Output at IG KEY "ON" and Engine running. 2.5 V is displayed.

Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2 V and 3 V periodically. Waveform of sensor Nernst Voltage at IG KEY "ON" and Engine running. 2.9 V is displayed.
