Variant Coding Procedure

■ On-Line Type on GDS

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

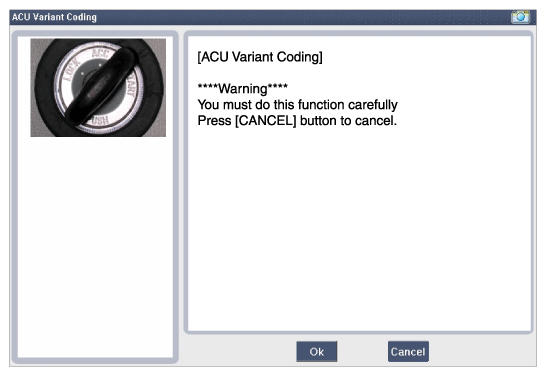

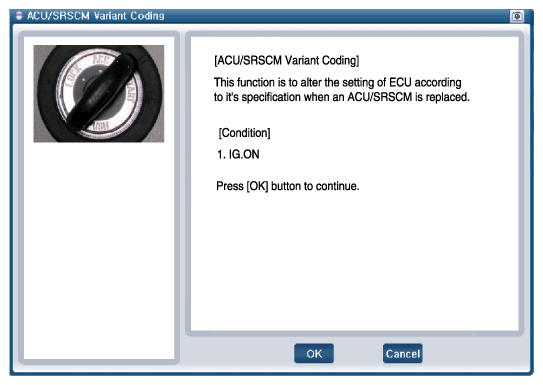

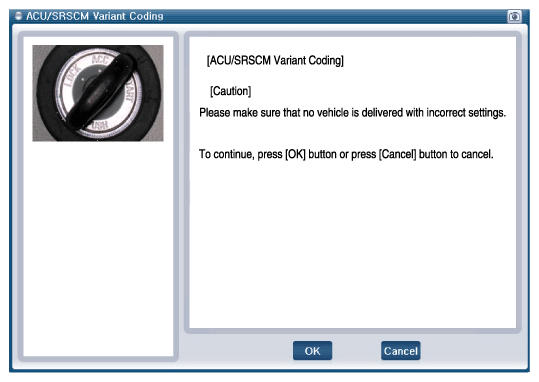

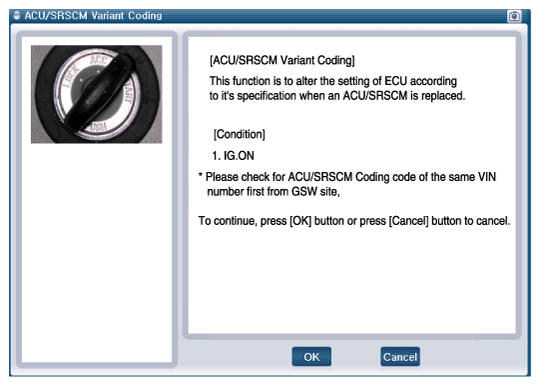

   1. Initial ACU Variant Coding screen
      Fig 1: Scantool Display - Initial ACU Variant Coding

      Courtesy of HYUNDAI MOTOR AMERICA

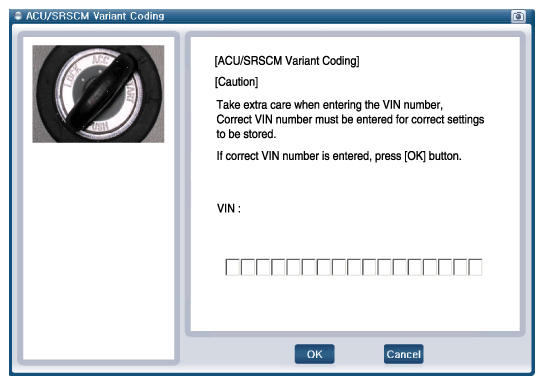

   2. VIN Code entering screen
      Fig 2: Scantool Display - VIN Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA

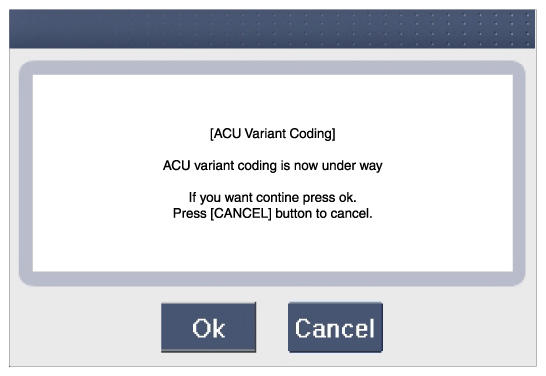

   3. Variant Coding's proceeding screen-1
      Fig 3: Scantool Display - Variant Coding'S Proceeding Screen-1

      Courtesy of HYUNDAI MOTOR AMERICA

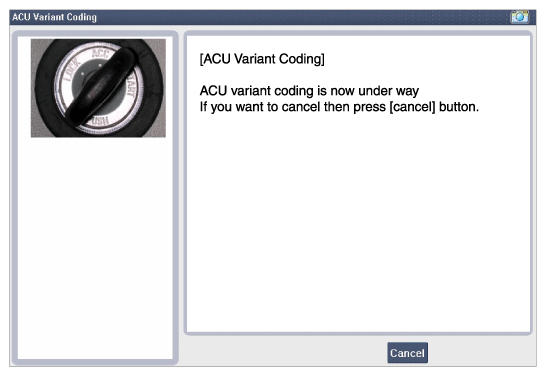

   4. Variant Coding's proceeding screen-2
      Fig 4: Scantool Display - Variant Coding'S Proceeding Screen-2

      Courtesy of HYUNDAI MOTOR AMERICA

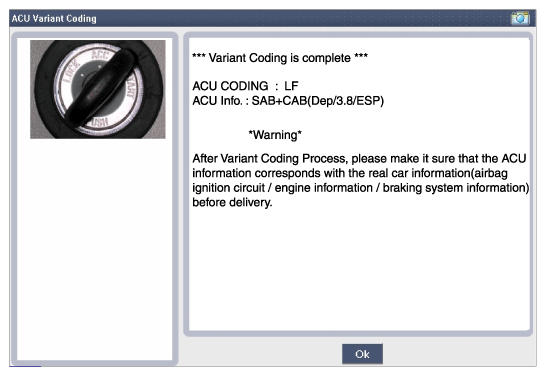

   5. Variant Coding is completed
      Fig 5: Scantool Display - Variant Coding Completed

      Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

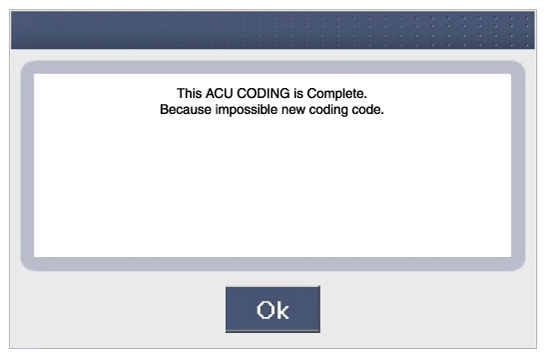

   1. This screen is displayed when you try variant coding on the SRSCM which has been performed before.
      Fig 6: Scantool Display - Variant Coding On SRSCM

      Courtesy of HYUNDAI MOTOR AMERICA
   2. This screen is displayed when communication failure has occurred.
      Fig 7: Scantool Display - Communication Failure

      Courtesy of HYUNDAI MOTOR AMERICA

■ Off-Line Type on GDS (Use when not connected to the internet)

1. Turn the ignition switch OFF.
2. Connect the GDS.
3. Turn the ignition switch ON without the engine running.
4. Select vehicle name and airbag system.
5. Select variant coding mode.
6. Follow the steps on the screen below.

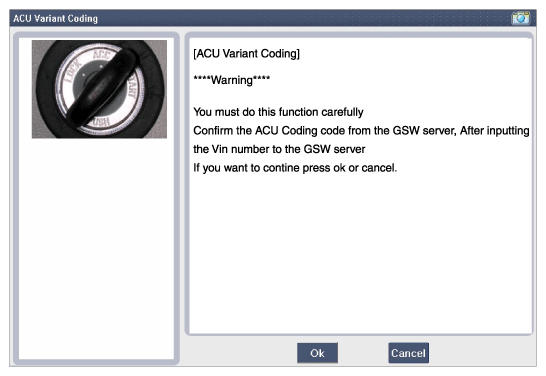

   1. Initial ACU Variant Coding screen
      Fig 8: Scantool Display - Initial ACU Variant Coding

      Courtesy of HYUNDAI MOTOR AMERICA

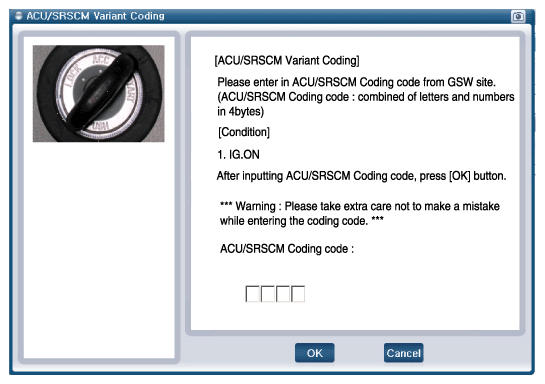

   2. ACU Coding Code entering screen
      Fig 9: Scantool Display - ACU Coding Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA
   3. Rechecking ACU Coding Code entering screen
      Fig 10: Scantool Display - Rechecking ACU Coding Code Entering

      Courtesy of HYUNDAI MOTOR AMERICA
   4. Variant Coding's proceeding screen-1
      Fig 11: Scantool Display - Variant Coding'S Proceeding Screen-1

      Courtesy of HYUNDAI MOTOR AMERICA
   5. Variant Coding's proceeding screen-2
      Fig 12: Scantool Display - Variant Coding'S Proceeding Screen-2

      Courtesy of HYUNDAI MOTOR AMERICA

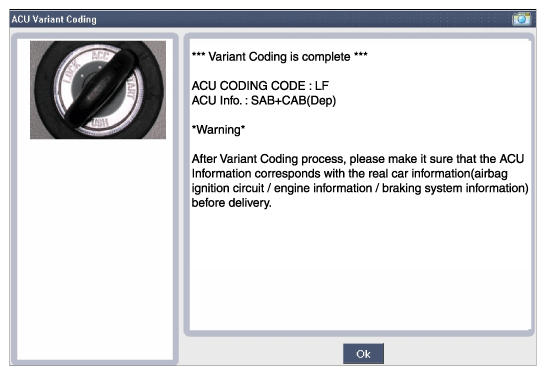

   6. Variant Coding is completed
      Fig 13: Scantool Display - Variant Coding Completed

      Courtesy of HYUNDAI MOTOR AMERICA
   NOTE:

   1. This screen is displayed when you try variant coding on the SRSCM which has been performed before.
      Fig 14: Scantool Display - ACU Coding Completed

      Courtesy of HYUNDAI MOTOR AMERICA
