Signal Waveform

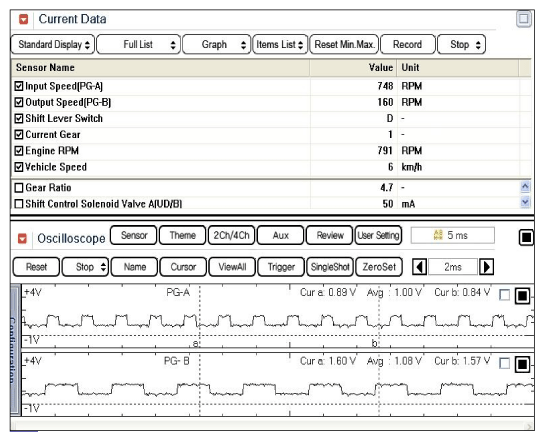

Fig 1: Screen Display - Input/Output Speed Sensor At Low Speed
G11995723Courtesy of HYUNDAI MOTOR AMERICA

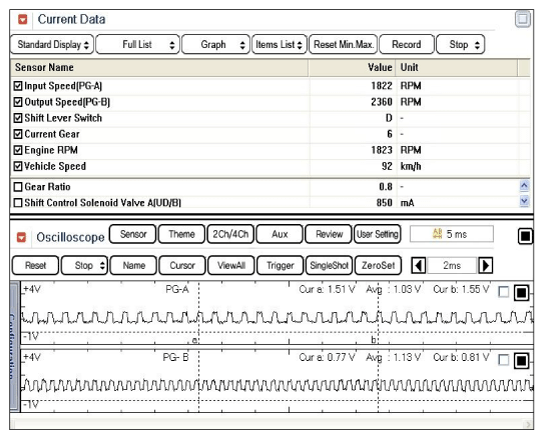

Fig 2: Screen Display - Input/Output Speed Sensor At High Speed
G11995724Courtesy of HYUNDAI MOTOR AMERICA
