Components And Components Location: Component

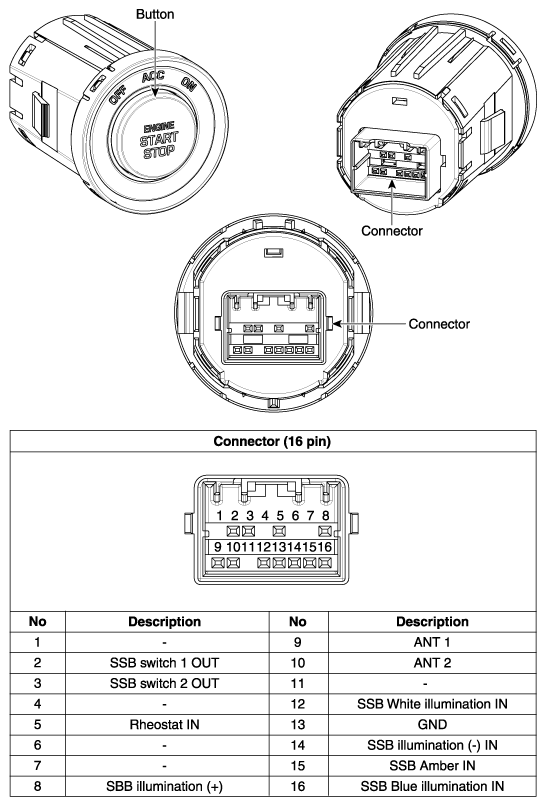

Fig 1: Start Stop Button Connector Terminals Description Chart
G11990074Courtesy of HYUNDAI MOTOR AMERICA
