Circuit Diagram

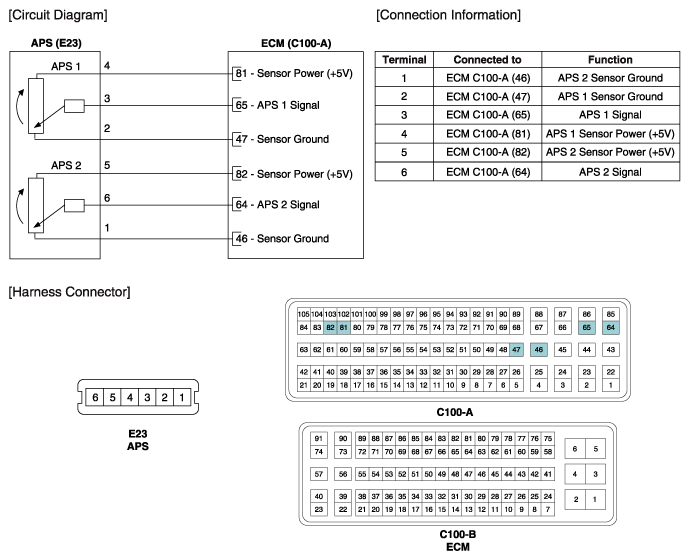

Fig 1: Accelerator Position Sensor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
