Description And Operation: Operation

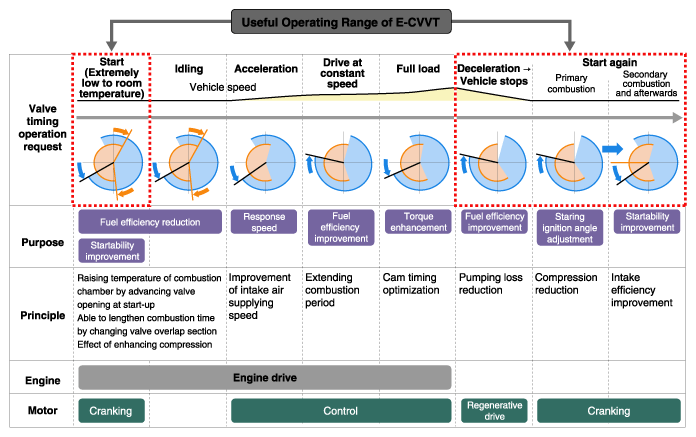

Fig 1: E-CVVT Motor Operation Chart
G11995534Courtesy of HYUNDAI MOTOR AMERICA
