Schematic Diagrams

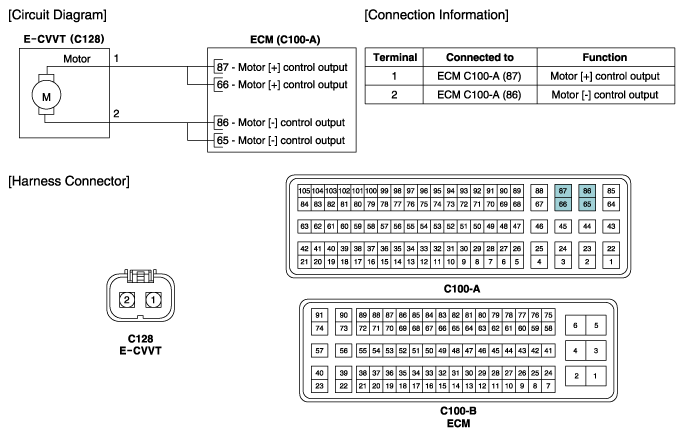

Fig 1: E-CVVT Motor Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
