Hyundai
>>
2017
>>
Sonata Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L (Except HEV)
>>
Variable Charge Motion Actuator (VCMA)
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagrams

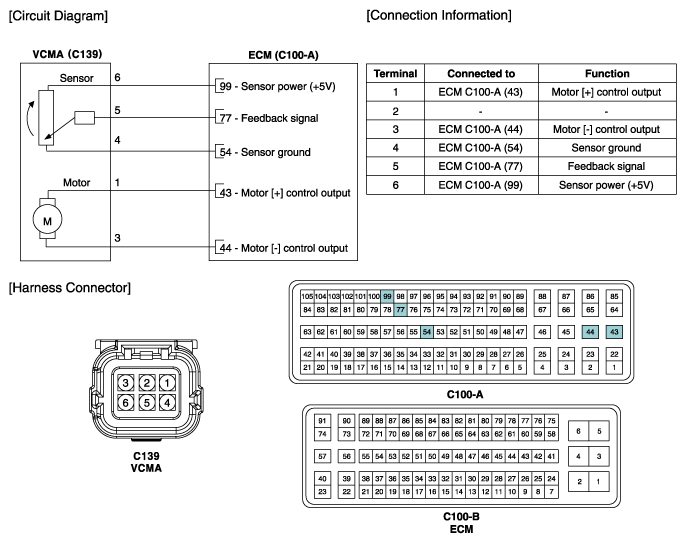

Fig 1: VCMA Circuit
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
