FOB Status Check

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "FOB KEY STATUS INFO".

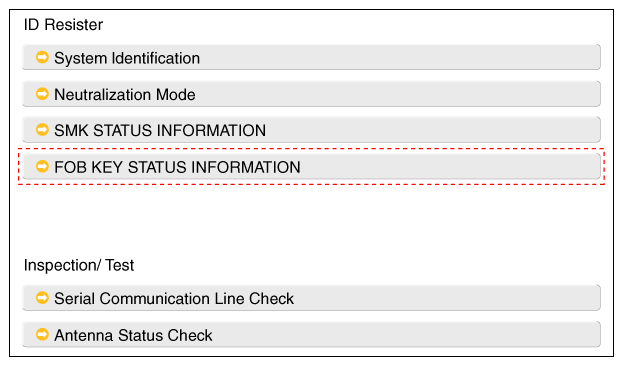

    Fig 1: Screen Display - Fob Key Status Information
    G10751359Courtesy of HYUNDAI MOTOR AMERICA

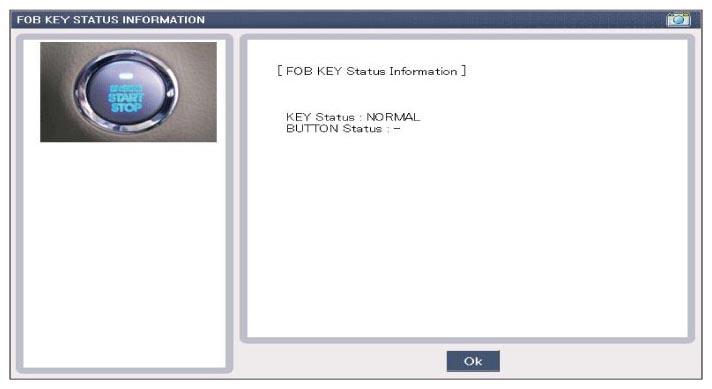

    Fig 2: Screen Display - Key Status Normal
    G10751360Courtesy of HYUNDAI MOTOR AMERICA
