Smart Key Status Check

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "SMK STATUS INFO".

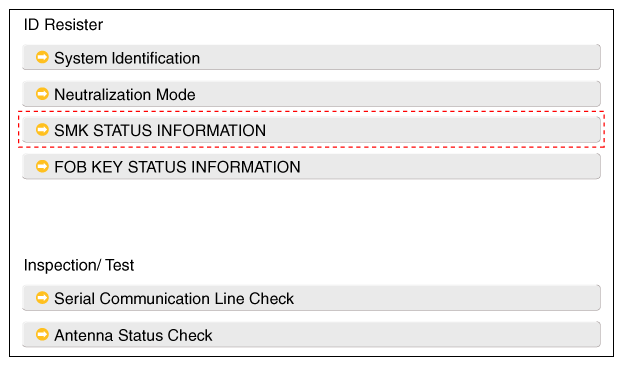

    Fig 1: Screen Display - SMK Status Information
    G10751361Courtesy of HYUNDAI MOTOR AMERICA

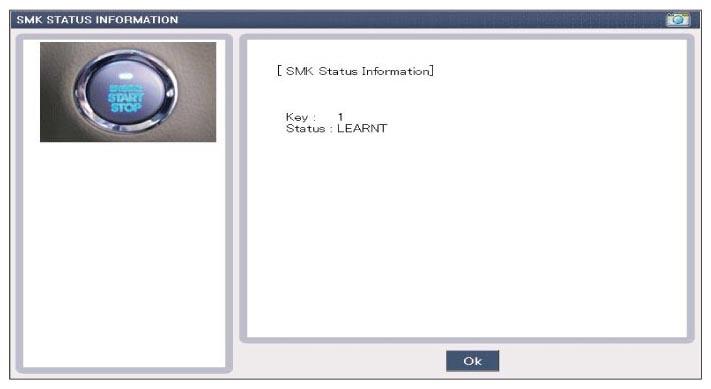

    Fig 2: Screen Display - Status Learnt
    G10751362Courtesy of HYUNDAI MOTOR AMERICA
